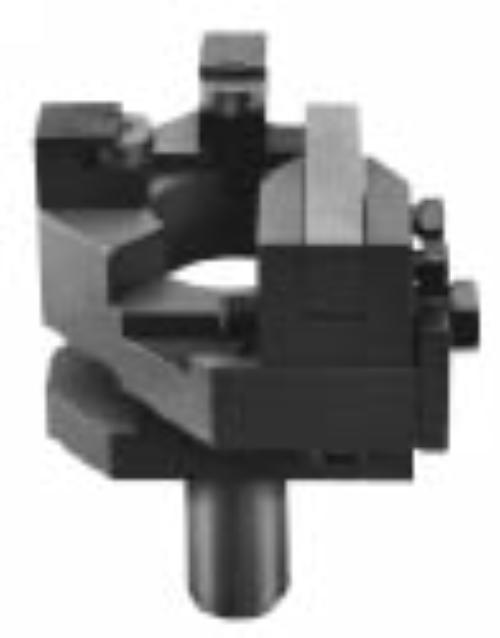

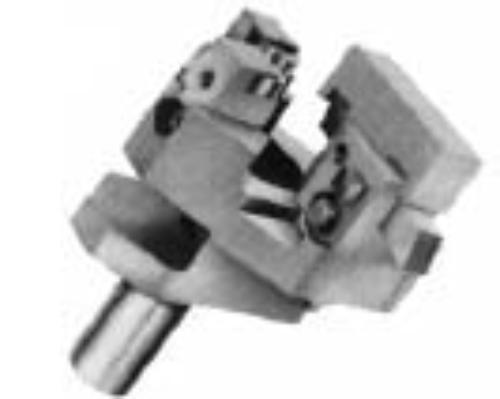

Roller Back Box Tools

Blade block slides permit straight line setting over the entire range of machine capacity without changing blade

clearance angle. Blade centering is with a one piece steel setting gage. Blade blocks are interchangeable for use

with left-handed or right-hand tools and for use with Balance Turning Tools. Roll blades are interchangeable for

use with left-hand or right-hand tools and for upper or lower support. New, interchangeable fine-adjust screw and

new blade block retainers are now standard, and may be used with new Balance Turning Tools as well as the new

Roller Back Box Tools. Extended Roll Holders and a full line of straight and tapered rolls are also available.

New Series Roller Back Box tools Furnished with one blade and two roller back rests

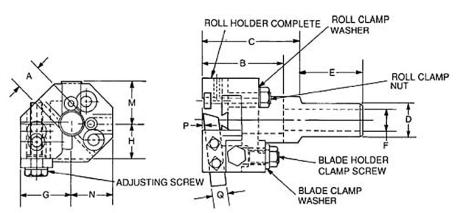

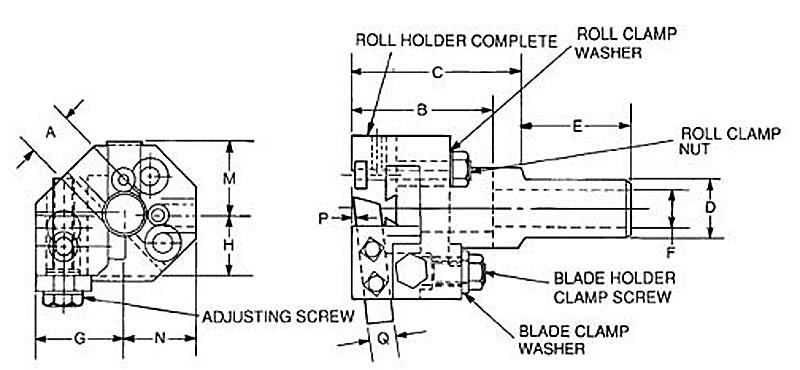

RH & LH Right or Replaces Shank Turning Capacity Left Hand These Old Tool No. Dia. Length Diameter Operation Tools 711-51-200 5/8" * .090" to .340"* Right Hand 711-51-100 1-1/4" .340" to .625" 711-52-200 5/8" * .090" to .340"# Left Hand 711-52-100 1-1/4' .340" to .625" 711-51-420 3/4" * .180" to .380" Right Hand 711-51-320 2" .380" to .625" 711-51-422 1" * .560" to .625" Right Hand 711-51-322 2-1/2" .625" to 1-1/2" 711-52-322 1" * .560" to .625" Leftt Hand 711-52-222 2-1/2" .625" to 1-1/2" 711-53-222 1" * .185" to .625" Right Hand 711-53-122 2-3/8" .625" to .750" 711-54-222 1" * .185" to .625" Left Hand 711-54-122 2-3/8" .625" to .750" * Turned diameter will pass throught shank bore. # For Diameters below .125", use Roll Holders no. 211-5139-1. Right and Left hand Tools have the same capacity. Setting Gages Tools Used With Tool No. 711-51-200, 711-52-200 711-57-100 711-53-222, 711-54-222, 711-51-420 711-57-122 711-52-422, 711-52-322 711-57-123 Blade Tool No.  A B C D E F G J M N P Q Size 711-51-200 0.69 1.37 1.52 0.62 1.32 0.38 1.3 0.88 0.88 0.88 0.04 0.31 5/16 x 5/16 711-51-420 0.69 2.07 2.32 0.75 1.5 0.44 1.6 1.1 1.21 1.21 0.06 0.44 7/16 x 7/16 711-51-422 1.56 2.66 2.16 1 2 0.69 2 1.68 1.81 1.81 0.1 0.5 1/2 x 1/2 711-52-200 0.69 1.37 1.52 0.62 1.32 0.38 1.3 0.88 0.88 0.88 0.04 0.31 5/16 x 5/16 711-52-322 1.56 2.66 3.16 1 2 0.69 2 1.68 1.81 1.81 0.1 0.5 1/2 x 1/2 711-53-222 0.81 2.56 3.06 1 2 0.69 1.62 1.12 1.28 1.28 0.06 0.44 7/16 x 7/16 711-54-222 0.81 2.56 3.06 1 2 0.69 1.62 1.12 1.28 1.28 0.06 0.44 7/16 x 7/16 Inches Turning length is unlimited when the workpiece will pass through the tool shank. 711-51-200 711-51-420 711-51-422 711-53-222 711-52-200 711-52-322 711-54-222 Blade Clamp Scr. 92-5391-808 92-5012-1016 92-5012-1016 92-5012-1016 Blade Hold. Clamp Scr. 92-5035-816 92-5035-1220 92-5035-1220 92-5035-1220 Blade Clamp Washer 92-2040-802-18 92-2040-1202-24 92-2040-1204-28 92-2040-1204-24 Blade Holder 211-6018-1 211-5302-2 211-6020 211-5302-2 Adjusting Scr. 211-6024-1 211-6022 211-6022 211-6022 Adjusting Scr. Retainer 211-6023 211-6021 211-6021 211-6021 Retainer Screw 472-642 92-5385-612 92-5385-612 92-5385-612 Roll Holder Comp. 211-5139 211-5303 211-5141 211-5303 Roll 711-55-100 711-55-120 711-55-122 711-55-120 Roll Pin 211-5126 211-5127 211-5125 211-5127 Roll/Pin Set Screw 92-5390-608 92-5390-620 92-5390-620 92-5390-620 Roll Holder Clamp Bolt 211-5140-1 211-5304-1 211-5124 211-5304-1 Roll Clamp Nut 92-6015-810 92-6015-1017 92-6015-1214 92-6015-1017 Roll Holder Adj. Scr. 211-2703-1 211-37308-1 211-2706-2 211-37308-1 Roll Clamp Washer 92-2040-802-16 92-2040-1002-20 92-2040-1202-20 92-2040-1002-20 Body R.H. 211-5101-3 211-5102-4 211-5103-2 211-5301-2 Body L.H. 211-5201-3 NONE 211-5203-2 211-5401-2 Blade 711-94080 711-94093 711-94092 711-94093 Tool No.
Brown-Sharpe SMT
Division of Lester Detterbeck Enterprises Ltd.
Website Design by North Country Website Design_
Copyright © 2016 Brown-Sharpe SMT. A division of Lester Detterbeck Enterprises, Ltd.

Roller Back Box Tools

Blade block slides permit straight line setting over the

entire range of machine capacity without changing

blade clearance angle. Blade centering is with a one

piece steel setting gage. Blade blocks are interchangeable

for use with left-handed or right-hand tools and for use with Balance

Turning Tools. Roll blades are interchangeable for use with left-hand

or right-hand tools and for upper or lower support. New,

interchangeable fine-adjust screw and new blade block retainers are

now standard, and may be used with new Balance Turning Tools as

well as the new Roller Back Box Tools. Extended Roll Holders and a

full line of straight and tapered rolls are also available.

New Series Roller Back Box tools Furnished with one blade and two roller back rests

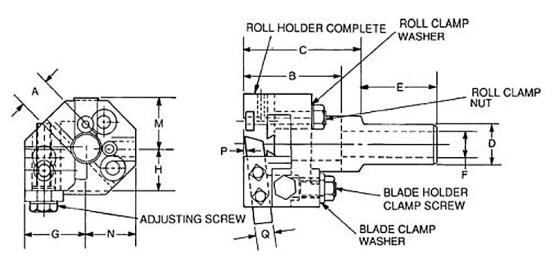

RH & LH Right or Replaces Shank Turning Capacity Left Hand These Old Tool No. Dia. Length Diameter Operation Tools 711-51-200 5/8" * .090" to .340"* Right Hand 711-51-100 1-1/4" .340" to .625" 711-52-200 5/8" * .090" to .340"# Left Hand 711-52-100 1-1/4' .340" to .625" 711-51-420 3/4" * .180" to .380" Right Hand 711-51-320 2" .380" to .625" 711-51-422 1" * .560" to .625" Right Hand 711-51-322 2-1/2" .625" to 1-1/2" 711-52-322 1" * .560" to .625" Leftt Hand 711-52-222 2-1/2" .625" to 1-1/2" 711-53-222 1" * .185" to .625" Right Hand 711-53-122 2-3/8" .625" to .750" 711-54-222 1" * .185" to .625" Left Hand 711-54-122 2-3/8" .625" to .750" * Turned diameter will pass throught shank bore. # For Diameters below .125", use Roll Holders no. 211-5139-1. Right and Left hand Tools have the same capacity. Setting Gages Tools Used With Tool No. 711-51-200, 711-52-200 711-57-100 711-53-222, 711-54-222, 711-51-420 711-57-122 711-52-422, 711-52-322 711-57-123 Blade Tool No.  A B C D E F G J M N P Q Size 711-51-200 0.69 1.37 1.52 0.62 1.32 0.38 1.3 0.88 0.88 0.88 0.04 0.31 5/16 x 5/16 711-51-420 0.69 2.07 2.32 0.75 1.5 0.44 1.6 1.1 1.21 1.21 0.06 0.44 7/16 x 7/16 711-51-422 1.56 2.66 2.16 1 2 0.69 2 1.68 1.81 1.81 0.1 0.5 1/2 x 1/2 711-52-200 0.69 1.37 1.52 0.62 1.32 0.38 1.3 0.88 0.88 0.88 0.04 0.31 5/16 x 5/16 711-52-322 1.56 2.66 3.16 1 2 0.69 2 1.68 1.81 1.81 0.1 0.5 1/2 x 1/2 711-53-222 0.81 2.56 3.06 1 2 0.69 1.62 1.12 1.28 1.28 0.06 0.44 7/16 x 7/16 711-54-222 0.81 2.56 3.06 1 2 0.69 1.62 1.12 1.28 1.28 0.06 0.44 7/16 x 7/16 Inches Turning length is unlimited when the workpiece will pass through the tool shank. 711-51-200 711-51-420 711-51-422 711-53-222 711-52-200 711-52-322 711-54-222 Blade Clamp Scr. 92-5391-808 92-5012-1016 92-5012-1016 92-5012-1016 Blade Hold. Clamp Scr. 92-5035-816 92-5035-1220 92-5035-1220 92-5035-1220 Blade Clamp Washer 92-2040-802-18 92-2040-1202-24 92-2040-1204-28 92-2040-1204-24 Blade Holder 211-6018-1 211-5302-2 211-6020 211-5302-2 Adjusting Scr. 211-6024-1 211-6022 211-6022 211-6022 Adjusting Scr. Retainer 211-6023 211-6021 211-6021 211-6021 Retainer Screw 472-642 92-5385-612 92-5385-612 92-5385-612 Roll Holder Comp. 211-5139 211-5303 211-5141 211-5303 Roll 711-55-100 711-55-120 711-55-122 711-55-120 Roll Pin 211-5126 211-5127 211-5125 211-5127 Roll/Pin Set Screw 92-5390-608 92-5390-620 92-5390-620 92-5390-620 Roll Holder Clamp Bolt 211-5140-1 211-5304-1 211-5124 211-5304-1 Roll Clamp Nut 92-6015-810 92-6015-1017 92-6015-1214 92-6015-1017 Roll Holder Adj. Scr. 211-2703-1 211-37308-1 211-2706-2 211-37308-1 Roll Clamp Washer 92-2040-802-16 92-2040-1002-20 92-2040-1202-20 92-2040-1002-20 Body R.H. 211-5101-3 211-5102-4 211-5103-2 211-5301-2 Body L.H. 211-5201-3 NONE 211-5203-2 211-5401-2 Blade 711-94080 711-94093 711-94092 711-94093 Tool No.
