No. 65 Adjustable Tool Holders

Accurate - Easy to Adjust!

Correct Misalignment Between Spindle and Turret!

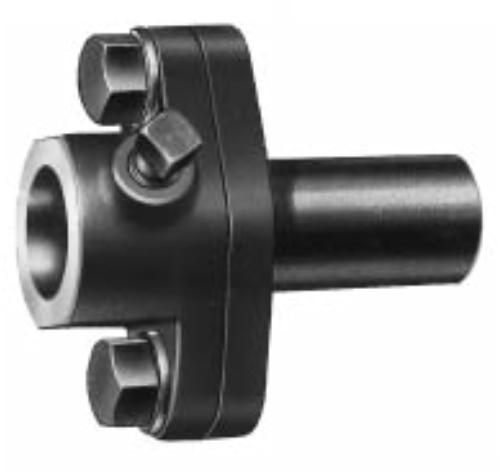

Adjustable Holders are used for holding drills, reamers, counterbores and similar tools, providing a

simple means of centering these cutting tools with the work.

The cutting tool is mounted in the head of the tool either directly or by use of a bushing and is

clamped securely in place by a set screw. An important advantage of this holder is that it maintains

the axis of the tool parallel with the machine spindle, as essential condition for accurate alignment

of the tool with the work.

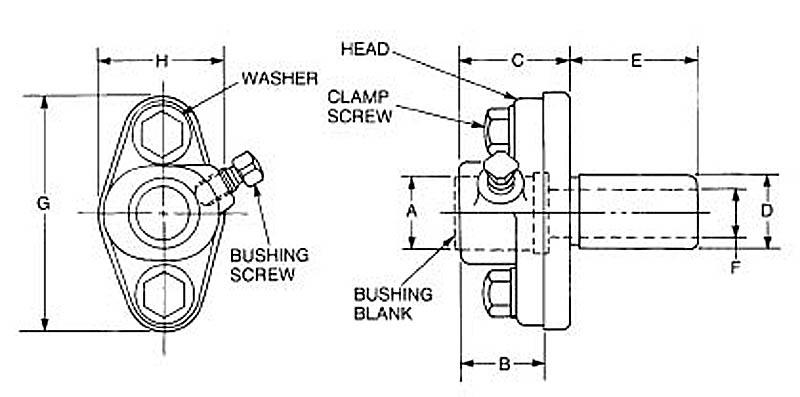

Shank Shank Dia. Length Tool No. 5/8" 1-1/8" 711-65-100 5/8" 1-1/2" 711-65-210 3/4" 1-1/2" 711-65-220 3/4" 2" 711-65-111 1" 2-1/2" 711-65-112 1" 1-3/4" 711-65-122 1-1/4" 2" 711-65-123 1-1/2" 3-3/4" 711-65-1150-1 1-3/4" 3-3/4" 711-65-1175 1-1/2" 3-3/4" 712-65-1150-1 1-3/4' 3-3/4" 712-65-1175 2' 3-3/4" 712-65-1200-1 Inches Tool No. A B C D E F G H 711-65-100 1/2 5/8 27/32 5/8 1-1/8 3/8 1-15/16 1 711-65-210 1/2 5/8 27/32 5/8 1-1/8 3/8 1-7/8 1 711-65-220 5/8 13/16 1-1/8 3/4 1-1/2 7/16 2-5/8 1-1/4 711-65-111 5/8 13/16 1-1/8 3/4 2 7/16 2-5/8 1-1/4 711-65-112 1 1-1/8 1-1/2 1 2-1/2 11/16 3-1/4 1-3/4 711-65-122 1 1-1/8 1-1/2 1 1-3/4 11/16 3-1/4 1-3/4 711-65-123 1.5 1.6 2 1.25 2 0.81 4.3 2.2 712-65-1150-1 1-1/2 1-19/32 2-5/32 1-1/2 3-3/4 3/4 3-3/4 1-7/8 712-65-1175 1-1/2 1-19/32 2-5/32 1-3/4 3-3/4 3/4 4-3/4 2-5/8 712-65-1200-1 1-1/2 1-19/32 2-5/32 2 3-3/4 3/4 4-3/4 2-5/8 Tool No. Bushing Screw Clamp Screw Clamp Washer Head Shank 711-65-100 92-5012-810 211-6535-1 211-10545-1 211-6510-2 211-6501 711-65-111 92-5012-1016 92-5035-1020 92-2040-1002-20 211-6532-2 211-6502-1 711-65-112 95-5012-1220 92-5035-1228 92-2040-1204-24 211-6513-3 211-6505-1 711-65-122 92-5012-1220 92-5035-1228 92-2040-1204-24 211-6513-3 211-6503-1 711-65-210 92-5012-810 211-6535-1 211-10545-1 211-6510-2 211-10900 711-65-220 92-5012-1016 92-5035-1020 92-2040-1002-20 211-6532-2 211-10905-1 711-65-123 92-5010-1624 92-5035-1632 92-2040-1604-28 211-6536 211-6537 712-65-1150-1 92-5010-1632 92-5035-1236 92-2040-1203-28 212-65-1500 212-10502 712-65-1175 92-5010-1624 92-5035-1636 92-2040-1604-32 212-6507 212-6504 712-65-1200-1 92-5010-1632 92-5035-1236 92-2040-1203-28 212-65-1500 212-10504
Brown-Sharpe SMT
Division of Lester Detterbeck Enterprises Ltd.
Website Design by North Country Website Design.  _
Copyright © 2016 Brown-Sharpe SMT. A division of Lester Detterbeck Enterprises, Ltd.

No. 65 Adjustable Tool Holders

Accurate - Easy to Adjust!

Correct Misalignment Between Spindle and Turret!

Adjustable Holders are used for holding drills,

reamers, counterbores and similar tools,

providing a simple means of centering these

cutting tools with the work.

The cutting tool is mounted in the head of the tool either

directly or by use of a bushing and is clamped securely in place

by a set screw. An important advantage of this holder is that it

maintains the axis of the tool parallel with the machine spindle,

as essential condition for accurate alignment of the tool with the

work.

Shank Shank Dia. Length Tool No. 5/8" 1-1/8" 711-65-100 5/8" 1-1/2" 711-65-210 3/4" 1-1/2" 711-65-220 3/4" 2" 711-65-111 1" 2-1/2" 711-65-112 1" 1-3/4" 711-65-122 1-1/4" 2" 711-65-123 1-1/2" 3-3/4" 711-65-1150-1 1-3/4" 3-3/4" 711-65-1175 1-1/2" 3-3/4" 712-65-1150-1 1-3/4' 3-3/4" 712-65-1175 2' 3-3/4" 712-65-1200-1 Inches Tool No. A B C D E F G H 711-65-100 1/2 5/8 27/32 5/8 1-1/8 3/8 1-15/16 1 711-65-210 1/2 5/8 27/32 5/8 1-1/8 3/8 1-7/8 1 711-65-220 5/8 13/16 1-1/8 3/4 1-1/2 7/16 2-5/8 1-1/4 711-65-111 5/8 13/16 1-1/8 3/4 2 7/16 2-5/8 1-1/4 711-65-112 1 1-1/8 1-1/2 1 2-1/2 11/16 3-1/4 1-3/4 711-65-122 1 1-1/8 1-1/2 1 1-3/4 11/16 3-1/4 1-3/4 711-65-123 1.5 1.6 2 1.25 2 0.81 4.3 2.2 712-65-1150-1 1-1/2 1-19/32 2-5/32 1-1/2 3-3/4 3/4 3-3/4 1-7/8 712-65-1175 1-1/2 1-19/32 2-5/32 1-3/4 3-3/4 3/4 4-3/4 2-5/8 712-65-1200-1 1-1/2 1-19/32 2-5/32 2 3-3/4 3/4 4-3/4 2-5/8 Tool No. Bushing Screw Clamp Screw Clamp Washer Head Shank 711-65-100 92-5012-810 211-6535-1 211-10545-1 211-6510-2 211-6501 711-65-111 92-5012-1016 92-5035-1020 92-2040-1002-20 211-6532-2 211-6502-1 711-65-112 95-5012-1220 92-5035-1228 92-2040-1204-24 211-6513-3 211-6505-1 711-65-122 92-5012-1220 92-5035-1228 92-2040-1204-24 211-6513-3 211-6503-1 711-65-210 92-5012-810 211-6535-1 211-10545-1 211-6510-2 211-10900 711-65-220 92-5012-1016 92-5035-1020 92-2040-1002-20 211-6532-2 211-10905-1 711-65-123 92-5010-1624 92-5035-1632 92-2040-1604-28 211-6536 211-6537 712-65-1150-1 92-5010-1632 92-5035-1236 92-2040-1203-28 212-65-1500 212-10502 712-65-1175 92-5010-1624 92-5035-1636 92-2040-1604-32 212-6507 212-6504 712-65-1200-1 92-5010-1632 92-5035-1236 92-2040-1203-28 212-65-1500 212-10504
