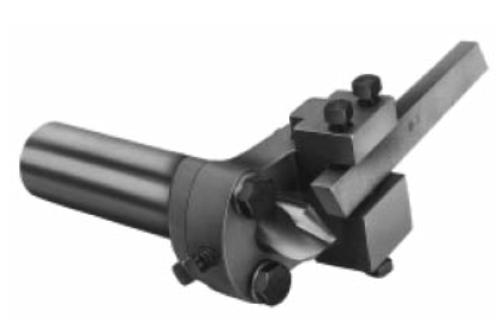

No. 172 Combination Right and Left-Hand Adjustable Centering and Facing Tools

Aligns Tool Head with Spindle!

These tools offer a blade and center drill on a head which can be adjusted with relation to the

tool body. This lets you center the drill to the work in the spindle, thereby eliminating the need

for grinding an "off-center" center on the drill. You can change these tools quickly and easily

from right-hand to left-hand. Since they are self-contained, there are no extra parts to be lost.

This flexibility makes it possible to cut down on your tool inventory, one tool serving a dual

purpose. they are furnished with one hardened steel blade and one right-hand center drill.

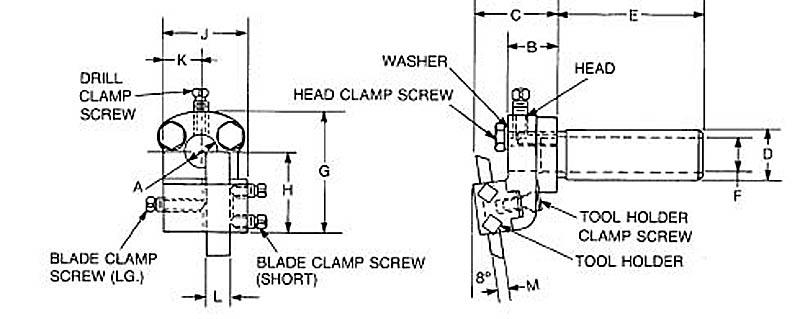

Shank Max. Diameter Tool Dia. (Inches) No. 5/8 1/2 711-172-200 3/4 3/4 711-172-120 1 1 711-172-222 Inches Tool No. A B C D E F G H J K L M (Blade) 711-172-200 5/16 11/16 1-3/16 5/8 1-1/2 3/8 1-19/32 1-3/32 1-3/16 5/16 5/16 1/4 x 5/16 711-172-120 3/8 15/16 1-19/32 3/4 2 1/2 2-13/32 1-19/32 1-11/16 3/4 1/2 1/4 x 1/2 711-172-222 5/8 15/16 1-19/32 1 2-7/8 11/16 2-13/32 1-19/32 1-11/16 3/4 1/2 1/4 x 1/2 Tool No. 711-172-200 711-172-120 711-172-222 Head 211-17201-3 211-17209 211-17204-2 Head Clamp Scr. 211-17208 472-344 472-344 Washer 211-10545-1 92-2040-802-16 92-2040-802-16 Tool Holder 211-17203 211-17206 211-17206 Tool Holder Cl. Scr. 92-5380-816 92-5380-816 92-5380-816 Blade Clamp Scr.-L 92-5191-818 92-5191-828 92-5191-828 Blade clamp Scr.-S 92-5191-814 92-5191-814 92-5191-814 Right hand Ctr. Drill 211-96001 211-96002 211-96003 Drill Clamp Screw 92-5012-816 92-5010-824 92-5010-824 Shank 211-17207-1 211-17210 211-17211 Blade 711-94075 711-94078 711-94078
Brown-Sharpe SMT
Division of Lester Detterbeck Enterprises Ltd.
Website Design by North Country Website Design_
Copyright © 2016 Brown-Sharpe SMT. A division of Lester Detterbeck Enterprises, Ltd.

No. 172 Combination Right and Left-Hand

Adjustable Centering and Facing Tools

Aligns Tool Head with Spindle!

These tools offer a blade and center

drill on a head which can be adjusted

with relation to the tool body. This lets you

center the drill to the work in the spindle, thereby eliminating the

need for grinding an "off-center" center on the drill. You can

change these tools quickly and easily from right-hand to left-hand.

Since they are self-contained, there are no extra parts to be lost.

This flexibility makes it possible to cut down on your tool

inventory, one tool serving a dual purpose. they are furnished with

one hardened steel blade and one right-hand center drill.

Shank Max. Diameter Tool Dia. (Inches) No. 5/8 1/2 711-172-200 3/4 3/4 711-172-120 1 1 711-172-222 Inches Tool No. A B C D E F G H J K L M (Blade) 711-172-200 5/16 11/16 1-3/16 5/8 1-1/2 3/8 1-19/32 1-3/32 1-3/16 5/16 5/16 1/4 x 5/16 711-172-120 3/8 15/16 1-19/32 3/4 2 1/2 2-13/32 1-19/32 1-11/16 3/4 1/2 1/4 x 1/2 711-172-222 5/8 15/16 1-19/32 1 2-7/8 11/16 2-13/32 1-19/32 1-11/16 3/4 1/2 1/4 x 1/2 Tool No. 711-172-200 711-172-120 711-172-222 Head 211-17201-3 211-17209 211-17204-2 Head Clamp Scr. 211-17208 472-344 472-344 Washer 211-10545-1 92-2040-802-16 92-2040-802-16 Tool Holder 211-17203 211-17206 211-17206 Tool Holder Cl. Scr. 92-5380-816 92-5380-816 92-5380-816 Blade Clamp Scr.-L 92-5191-818 92-5191-828 92-5191-828 Blade clamp Scr.-S 92-5191-814 92-5191-814 92-5191-814 Right hand Ctr. Drill 211-96001 211-96002 211-96003 Drill Clamp Screw 92-5012-816 92-5010-824 92-5010-824 Shank 211-17207-1 211-17210 211-17211 Blade 711-94075 711-94078 711-94078
