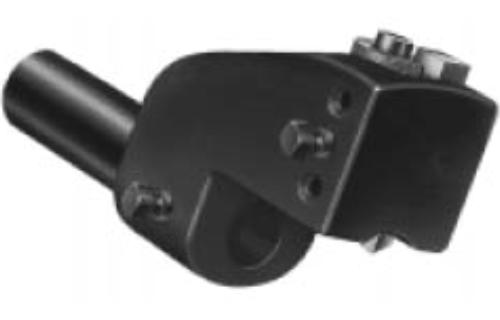

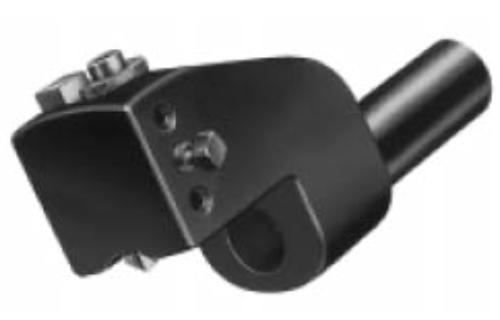

No. 165 Combination Right and Left Hand Knee Tools

Fastest Setting Turning Tool Available

These tools can be used for either right or left-hand turning simply by changing the blade screws

from one side of the tool to the other. The adjusting screw permits you to make fine radial

adjustment of the cutting blade. The blade can be ground for turning a sharp shoulder that is

perpendicular to the centerline of the piece. Shank holds centering tool, counter-bore, drill or

similar tool for simultaneous internal cutting. One slotted hardened blade is furnished.

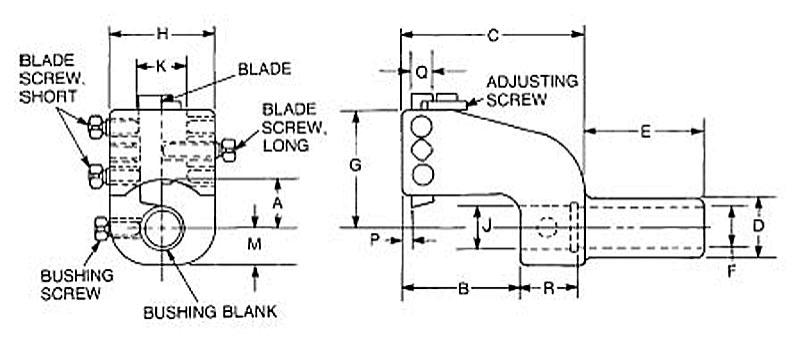

Shank Turning Capacity Dia. Length Diameter Tool No. 5/8" 5/8" up to 3/4" 711-165-100 # up to 3/8" 3/4" 1" up to 7/8" 711-165-120 # up to 15/32" 1" 1-3/4" up to 1-5/8" 711-165-122 # up to 21/32" 1-1/4" # up to 21/32" 711-165-123 2-1/2" 21/32 to 3/4" 1/2" 3/4" to 2.4" # Turned diameter will pass through shank bore. For Tool No. Size Tool No. 711-165-100 1/4 x 1/4 x 1-1/8 211-94053-1 711-165-120 5/16 x 5/16 x 1-7/16 211-94056-1 711-165-122 3/8 x 3/8 x 1-7/8 211-94052-1 711-165-123 3/8 x 3/8 x 1-7/8 211-94052-1 Inches Tool No. A B C D E F G H J K M P Q R 711-165-100 13/32 3/4 1-3/8 5/8 1-5/8 7/16 1-3/16 1-1/4 1/2 9/16 3/8 3/32 1/4 1/2 711-165-120 9/16 1-1/4 2-1/4 3/4 2 1/2 1-11/16 1-1/2 5/8 11/16 1/2 1/8 5/16 13/16 711-165-122 7/8 1-15/16 3 1 2 11/16 2 1-3/4 3/4 13/16 5/8 1/8 3/8 15/16 711-165-123 1-5/16 1-3/4 2-5/8 1-1/4 2 11/16 2-1/2 3/16 3/4 13/16 11/16 9/64 3/8 31/32 Note: Turning length is unlimited when workpiece will pass through tool shank. Tool No. 711-165-100 711-165-120 711-165-122 711-165-123 Adjusting Screw 211-16504 211-16505 211-16506-1 211-16506-1 Blade Screw-Short 92-5191-612 92-5191-814 92-5191-1016 92-5191-1016 Blade Screw-Long 92-5191-620 92-5191-824 92-5191-1028 92-5191-1028 Bushing Screw 92-5191-612 92-5191-814 92-5191-1016 92-5012-1020 Body 211-16501-1 211-16502 211-16503-1 211-16507 Blade 211-94053-1 211-94056-1 211-94052-1 211-94052-1
Brown-Sharpe SMT
Division of Lester Detterbeck Enterprises Ltd.
Website Design by North Country Website Design.  _
Copyright © 2016 Brown-Sharpe SMT. A division of Lester Detterbeck Enterprises, Ltd.

No. 165 Combination Right and

Left Hand Knee Tools

Fastest Setting Turning Tool Available

These tools can be used for either right or

left-hand turning simply by changing the blade

screws from one side of the tool to the other. The

adjusting screw permits you to make fine radial

adjustment of the cutting blade. The blade can be ground

for turning a sharp shoulder that is

perpendicular to the centerline of the

piece. Shank holds centering tool,

counter-bore, drill or similar tool for

simultaneous internal cutting. One slotted hardened blade is

furnished.


Shank Turning Capacity Dia. Length Diameter Tool No. 5/8" 5/8" up to 3/4" 711-165-100 # up to 3/8" 3/4" 1" up to 7/8" 711-165-120 # up to 15/32" 1" 1-3/4" up to 1-5/8" 711-165-122 # up to 21/32" 1-1/4" # up to 21/32" 711-165-123 2-1/2" 21/32 to 3/4" 1/2" 3/4" to 2.4" # Turned diameter will pass through shank bore. For Tool No. Size Tool No. 711-165-100 1/4 x 1/4 x 1-1/8 211-94053-1 711-165-120 5/16 x 5/16 x 1-7/16 211-94056-1 711-165-122 3/8 x 3/8 x 1-7/8 211-94052-1 711-165-123 3/8 x 3/8 x 1-7/8 211-94052-1 Inches Tool No. A B C D E F G H J K M P Q R 711-165-100 13/32 3/4 1-3/8 5/8 1-5/8 7/16 1-3/16 1-1/4 1/2 9/16 3/8 3/32 1/4 1/2 711-165-120 9/16 1-1/4 2-1/4 3/4 2 1/2 1-11/16 1-1/2 5/8 11/16 1/2 1/8 5/16 13/16 711-165-122 7/8 1-15/16 3 1 2 11/16 2 1-3/4 3/4 13/16 5/8 1/8 3/8 15/16 711-165-123 1-5/16 1-3/4 2-5/8 1-1/4 2 11/16 2-1/2 3/16 3/4 13/16 11/16 9/64 3/8 31/32 Note: Turning length is unlimited when workpiece will pass through tool shank. Tool No. 711-165-100 711-165-120 711-165-122 711-165-123 Adjusting Screw 211-16504 211-16505 211-16506-1 211-16506-1 Blade Screw-Short 92-5191-612 92-5191-814 92-5191-1016 92-5191-1016 Blade Screw-Long 92-5191-620 92-5191-824 92-5191-1028 92-5191-1028 Bushing Screw 92-5191-612 92-5191-814 92-5191-1016 92-5012-1020 Body 211-16501-1 211-16502 211-16503-1 211-16507 Blade 211-94053-1 211-94056-1 211-94052-1 211-94052-1
