Knurling Swing Tools

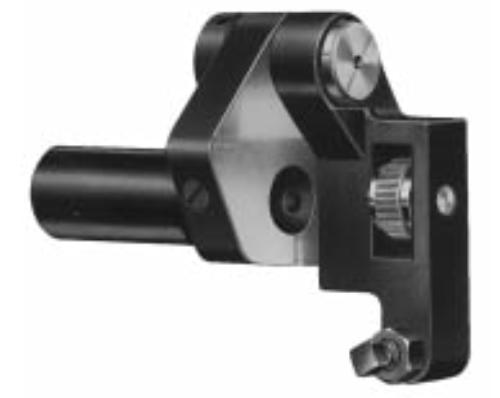

These tools are used for knurling behind shoulders and for knurling a section at some distance from the end of the piece. They are

used also for longitudinal knurling and for light thread rolling. The knurl is held in the swinging

arm which is pivoted to the main body of the tool. The arm is actuated by a fixed or an adjustable

guide which is mounted on the front cross slide.

The shank is designed to hold a back rest or a special support which can be clamped into position

by a set screw. Carbide Pins are used for long life.

The maximum knurl width is 5/16". Two spacers are provided for use with standard 3/16" knurls.

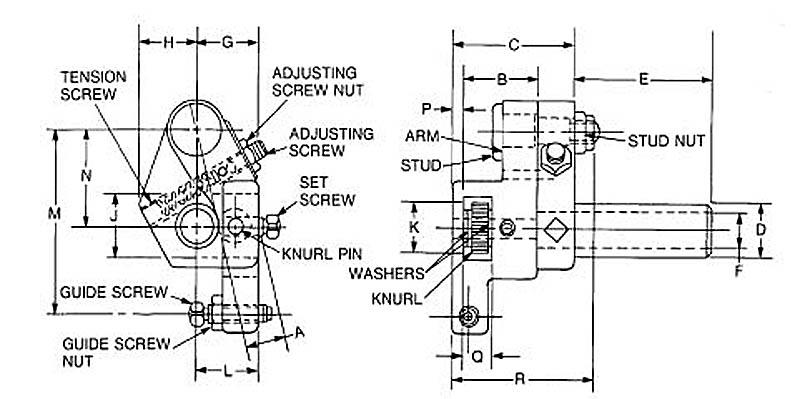

Shank Max.                           Knurling Capacity (Inches) Dia. Knurl Size Length Diameter Tool No. 5/8" 1/2" x 3/16" X 3/16" 1/2" up to 1/2" 711-210-100 # up to 3/8" # Turned diameter will pass through shank bore. Inches Tool No. A B C D E F G H J K L M N P Q R 711-210-100 1/2 3/4 1-1/4 5/8 1-1/4 7/16 1 3/4 11/16 1/2 5/8 1-13/16 7/8 1/8 5/16 1-7/16 Tool No. 711-210-100 Carbide Knurl Pin 211-21006 Arm 211-21003-2 Washer 92-21003-2 Guide Screw 92-2040-602-12 Guide Screw Nut 92-6101-611 Set Screw 92-5390-606 Stud 211-21009-1 Stud Nut 472-153 Plunger 211-21012 Clamp Screw 92-5390-620 Adjusting Screw 92-5390-620 Adjusting Screw Nut 92-6010-611 Tension Screw 92-5071-808 Spring 92-1000-632-20 Tension Stop Pin 211-21012
