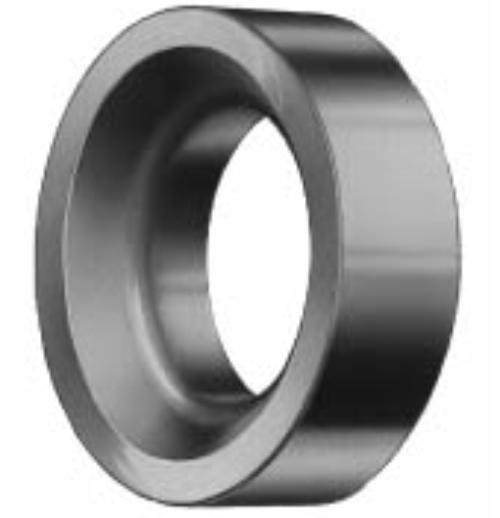

Feed Tube Bushings

Feed Tube Bushings are used in the rear end of feed tubes to steady and support the stock. They

prevent stock from whipping in the feed tube, increasing the life of the feed tube and the feeding

finger. They are installed easily in the feed tube by removing the nut on the end of the tube.

Busings are recommended for use with all types of stock, hex, square as well as round. The round

I.D. bushings also work well with hex and square stock.

No. 00 Round For Nos. 00 & 00G Auto. and Nos. 00 & 00G Auto. screw threading (Commencing Serial No. 131820.) For Auto. Screw Threading (Commencing Serial No. 500.) For Auto. Cutting-Off (Opposed Spindle Type.) For Auto. Pinion Turning (1/4" max.) For No. 00 Hand Screw. No. 20 Round For No. 00 Auto. 3/4" capacity. For Nos. 0 & 0G Auto. (Commencing Serial No. 8021.) For No. 0 Hand Screw and No. 2 with 3/4" capacity spindle. No. 22A Round For Nos. 2 & 2G Auto. (Commencing Serial no. 9084) with 1-1/2" capacity spindle. No. 27 Round No. 22B Round For No. 2 Ultramatic 1-5/8" cap. No. 26 Round For No. 4 Auto.(Commending Serial No. 542-4-1.) For Nos. 3 Auto. with 2 3/8" capacity spindle.
Size Tool No. 1/8" 711-1002-100 1/4" 711-1004-100 3/8" 711-1006-100 1/2' 711-1008-100 Size Tool No. 1/4" 711-1004-120 3/8" 711-1006-120 1/2" 711-1008-120 5/8" 711-1010-120 3/4" 711-1012-120 Size Tool No. 1" 711-1016-222 1-1/2" 711-1024-222 Size Tool No. 2-1/8" 711-1034-127 2-1/4" 711-1036-127 2-3/8" 711-1038-127 Size Tool No. 1/2" 711-1008-322 5/8" 711-1010-322 3/4" 711-1012-322 7/8" 711-1014-322 1-1/8" 711-1018-322 1-1/4" 711-1020-322 1-3/8" 711-1022-322 1-1/2" 711-1024-322 1-5/8" 711-1026-322 Size Tool No. 1/4" 711-1004-120 3/8" 711-1006-120 1/2" 711-1008-120 5/8" 711-1010-120 3/4" 711-1012-120
