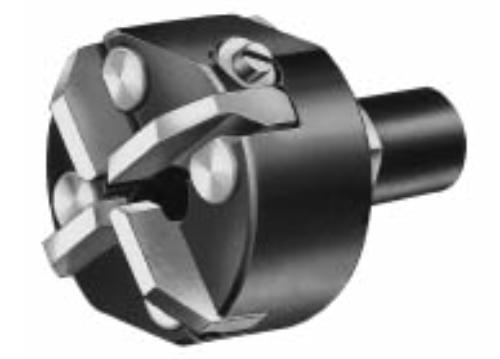

Combination Roughing and Finishing Adjustable Hollow Mills

Greatest Capacities - Easy, Accurate Settings

The new Combination Roughing and Finishing Adjustable Hollow Mills offer the greatest size

range of any tool in this class. FUrther advantages include a design which permits one set of

blades and back rests to cover the complete range of each tool and an adjusting screw on one

blade that provides easier and more accurate settings.

Blades are hardened and with the back rests have individual radial adjustment. Four blades are

used for roughing and two blades and two back rests for finishing.

*Discontinued Hollow Mill

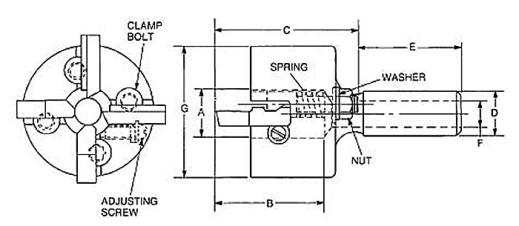

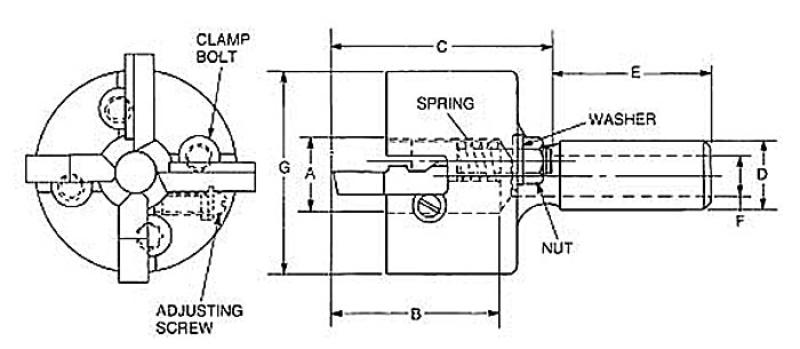

Shank Capacity Tool No. Diameter 5/8" .03" 1/2" 711-27-200 3/4" 3/16" 1/2" 711-27-120 1" 1/4" 1" 711-27-122 1-1/4" 1/4" 3/4" 712-25-1125 Inches Tool No. A B C D E F G 711-27-200 5/8 1-3/32 1-1/2 5/8 1-1/16 3/8 1-3/4 711-27-120 5/8 2-1/4 2-9/16 3/4 1-15/16 7/16 2-1/4 711-27-122 1-1/8 2-9/16 3-11/32 1 2-7/16 5/8 3 712-25-1125 13/16 2-5/8 3-1/4 1-1/4 3-1/4 3/4 3 Tool No. 712-25-1125 711-27-200 711-27-120 711-27-122 Body 212-2501 211-2701-1 211-2707 212-2704-1 Clamp Washer 92-2040-1202-24 NONE NONE 92-2040-1202-24 Clamp Bolt 212-2502 211-2702 211-2708 211-2705 Clamp Nut 92-6015-1214 92-6015-810 92-6015-1017 92-6015-1221 Spring NONE NONE 92-1000-1620-17 92-1000-2032-19 Adjusting Screw NONE 211-2703-1 211-2703-1 211-2706-2 Blades 711-35-112 711-37-200 711-37-120 711-37-122 Back Rest NONE 711-42-200 711-42-120 711-42-122 High Speed Steel Blades For Mill No. Tool No. Set of 4 25-1125 & 25-115 711-35-112 27-200 711-37-200 27-120 711-37-120 27-122 711-37-122 27-122 711-37-122 00* 711-3000-100 Back Rests Set of 2 Back Rests Tool No. for Mill No. per set 27-200 711-42-200 27-120 711-42-120 27-122 711-42-122
