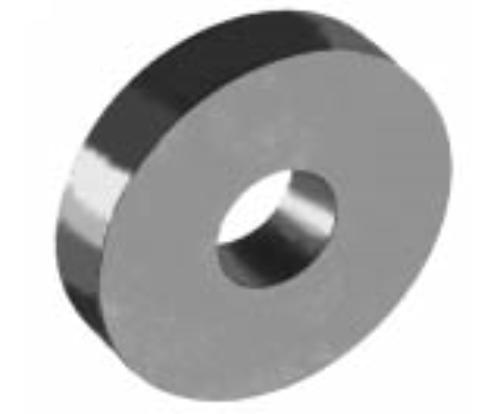

Circular Pointing Tool Blanks

Circular Pointing Tool Blanks are for use with the Pointing Tool Holders. Blanks are made from high

speed steel, hardened.

For use with Diameter O.D. Tool No. Tool Holder No. of Hole 711-180-100 3/8" 1-1/8" 211-18009 711-180-120 3/8" 1-3/8" 211-18010 711-180-122 1/2" 1-3/4" 211-18008 Inches Tool No. C D E F G H K L N 711-180-122 2-5/16 1 1-25/32 5/8 3-1/4 1-3/4 1-3/4 1/2 1/8 Tool No. 711-180-122 Holder 211-18006 Clamp Screw Washer 92-2040-1202-24 Clamp Screw 92-5035-1224 Holder Key 92-970-412 Tool Clamp Bolt 211-18012 Tool Clamp Nut 92-970-412 Shank 211-18003 Tool Blank 211-18008
