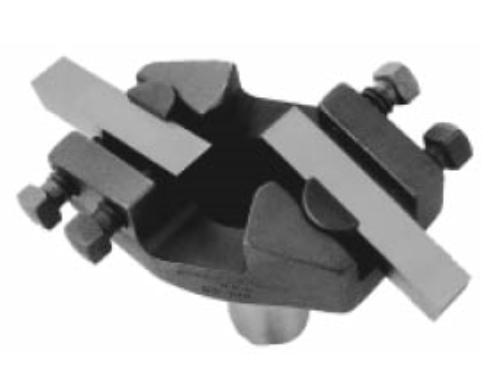

Balance Turning Tools
Balance Turning Tools are strong and free cutting. You need only one set of blades to turn
all sizes within the capacity of the machine. The blades cut tangentially and are adjusted
simply by swinging them up or down.
For finish turning or holding close tolerances, it is recommended that both blades be set
to cut to finish size. This provides a truly balanced cut with each blade cutting to equal
depth and removing an equal amount of stock. When set in this manner, the feed on each
blade is one-half the feed of the turret, which means longer tool life and better control of
tolerance and finish.
For rough turning, you can set one blade to the rough dimension while the other blade is set to the finished size. Two
hardened blade are furnished.
