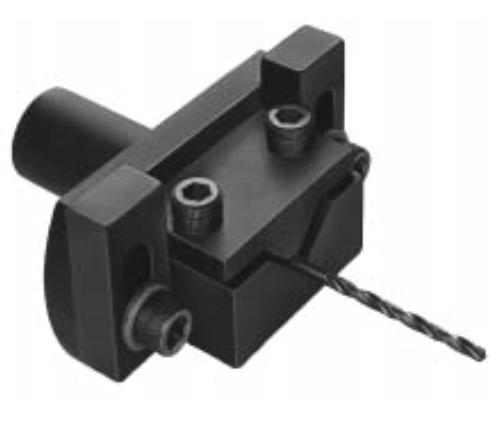

Adjustable V-Jaw Tool Holder

With Reversible Clamp for Extended Tool Holding Range! Eliminate Bushings - Center Tools Accurately!

Any size tool within the range of these holders will be held securely - whether the size is a fraction

or a decimal, letter or number, English or Metric. One V-Jaw tool holder will hold them all.

Bushings are not needed with the Adjustable V-Jaw Tool Holder. Save the costs of inventorying

them or making them - save the time and annoyance of finding the right one.

The V-Jaw Tool Holder centers tools accurately and gives you the precision capabilities of a

Toolmaker's V-Block. The "V" is square to the face within .003"; the face is square to the shank

within .0002". The reversible clamping piece completes the steadfast 3-line grip - with no marring

of the tool. Shank and flange are one piece, for extra rigidity. Simple centering (especially since one

wrench fits all screws.)

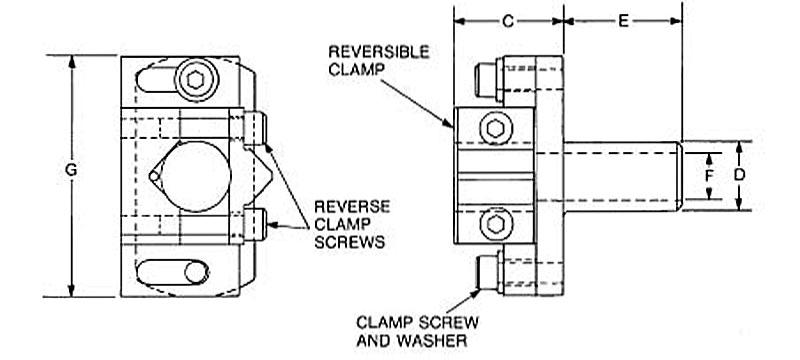

Capacity Shank Dia. Maximum Minimum Tool No. 5/8" 1/2" 1/64" 711-109-200 3/4" 3/4" 1/16" 711-109-220 1" 1" 1/8" 711-109-222 Inches Tool No. C D E D G 711-109-200 0.94 0.62 1.14 0.4 2 711-109-220 1.25 0.75 1.5 0.44 2.6 711-109-222 1.62 1 1.75 0.69 3.5 Tool No. 711-109-200 711-109-220 711-109-222 Shank 211-10904 211-10917 211-10920 Head 211-10915 211-10918 211-10921 Clamp 211-10916-1 211-10919 211-10922 V-Clamp Screw 92-5380-632 92-5380-836 92-5381-1036 Clamp Screw 472-3555 92-5380-824 92-5381-1032 Clamp Scr. Washer 92-2040-602-12 92-2040-802-16 92-2040-1003-20
Brown-Sharpe SMT
Division of Lester Detterbeck Enterprises Ltd.
Website Design by North Country Website Design_
Copyright © 2016 Brown-Sharpe SMT. A division of Lester Detterbeck Enterprises, Ltd.

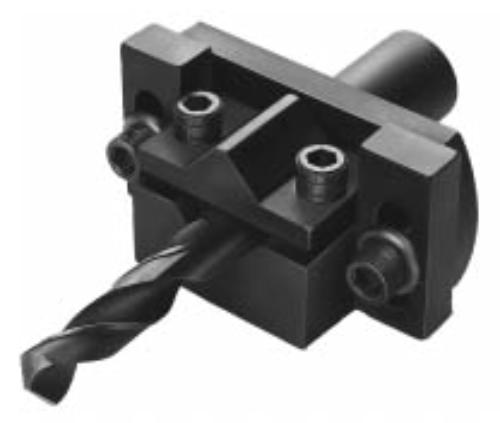

Adjustable V-Jaw Tool Holder
