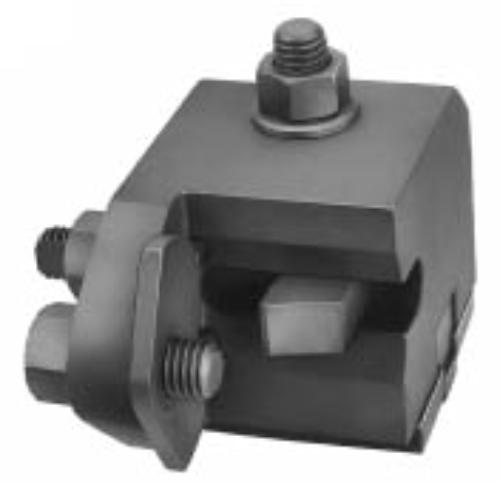

Tool Posts for Circular Tools

Hold Circular Forming Tools on Cross Slides

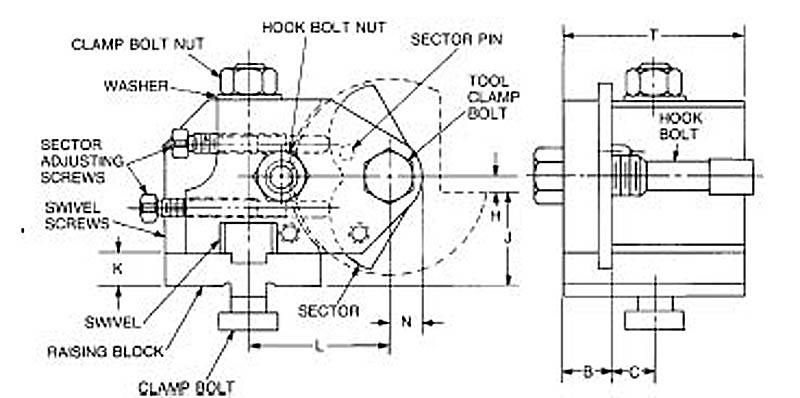

All circular tools posts have fine adjustment for setting tools accuratly on center. Each tool post is

equipped with a raising block so it may be used with the spindle running in either direction. a swivel is

also provided for squaring-up the tool post.


Machines Where Used Max. Dia. Of Tool Min. Dia. Of Tool Tool No. Tool Posts for Circular Tools (Front) 2 & 2G Auto, & 3 3" 2" 711-130-222 ** 2 Auto. - 3/4 Spin 2-1/4" 1-1/4" 711-133-222 * 00 & 00G Auto. 1-3/4" 1" 711-135-100 0 & OG Auto. 2-1/4" 1-1/4" 711-135-120 2 & 2G Auto. & 3 3" 1-1/2" 711-135-122 Tool Post for Circular Tools (Back) 2 & 2G Auto. & 3 3" 2" 711-131-222 ** 2 Auto. - 3/4" Spin. 2-1/4" 2-1/4" 711-134-222 * 00 & 00G Auto. 1-3/4" 1/2" 711-136-100 0 & 0G Auto. 2-1/4" 1-1/4" 711-136-120 2 & 2G Auto & 3 3" 1-1/2" 711-136-122 ** These Tool Posts accommodate extra wide circular tools. * Tool Posts Nos. 711-133-222 and 711-134-222 are for use on the 3/4" capacity No. 2 Machines only. They hold 2-1/4" diameter tools which are normally used on No. 0 Machines.
Brown-Sharpe SMT
Division of Lester Detterbeck Enterprises Ltd.
Website Design by North Country Website Design.  _
Copyright © 2016 Brown-Sharpe SMT. A division of Lester Detterbeck Enterprises, Ltd.

Tool Posts for Circular Tools

Hold Circular Forming Tools on Cross Slides

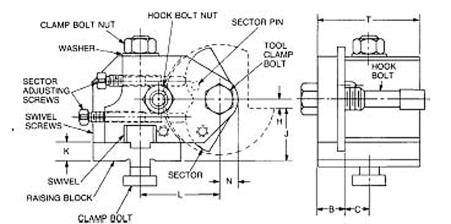

All circular tools posts have fine adjustment

for setting tools accuratly on center. Each

tool post is equipped with a raising block so

it may be used with the spindle running in

either direction. a swivel is also provided for

squaring-up the tool post.


Machines Where Used Max. Dia. Of Tool Min. Dia. Of Tool Tool No. Tool Posts for Circular Tools (Front) 2 & 2G Auto, & 3 3" 2" 711-130-222 ** 2 Auto. - 3/4 Spin 2-1/4" 1-1/4" 711-133-222 * 00 & 00G Auto. 1-3/4" 1" 711-135-100 0 & OG Auto. 2-1/4" 1-1/4" 711-135-120 2 & 2G Auto. & 3 3" 1-1/2" 711-135-122 Tool Post for Circular Tools (Back) 2 & 2G Auto. & 3 3" 2" 711-131-222 ** 2 Auto. - 3/4" Spin. 2-1/4" 2-1/4" 711-134-222 * 00 & 00G Auto. 1-3/4" 1/2" 711-136-100 0 & 0G Auto. 2-1/4" 1-1/4" 711-136-120 2 & 2G Auto & 3 3" 1-1/2" 711-136-122 ** These Tool Posts accommodate extra wide circular tools. * Tool Posts Nos. 711-133-222 and 711-134-222 are for use on the 3/4" capacity No. 2 Machines only. They hold 2-1/4" diameter tools which are normally used on No. 0 Machines.
