Side Knurl Holders
Knurl Holders for Cross Slides-Single Knurl Holders

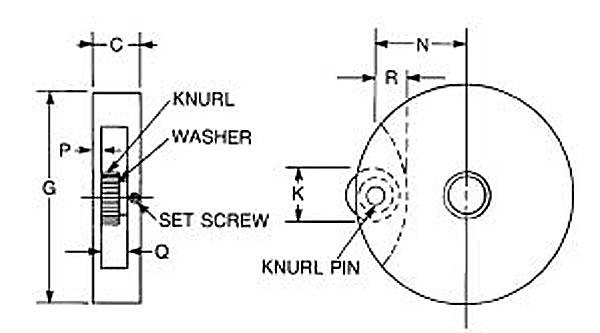

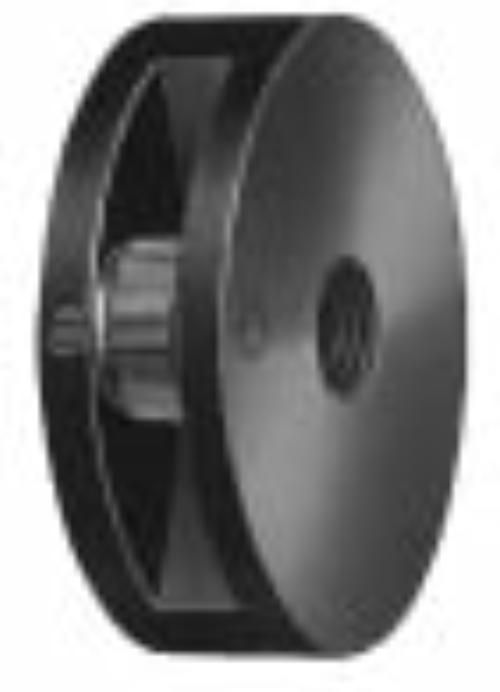

Single Knurl Holders for Cross Slides
Side Knurl Holders are held straight on either front or back tool posts in the same manner as circular forming
tools. They are also adaptable for light thread rolling. Carbide pins are used for long life.

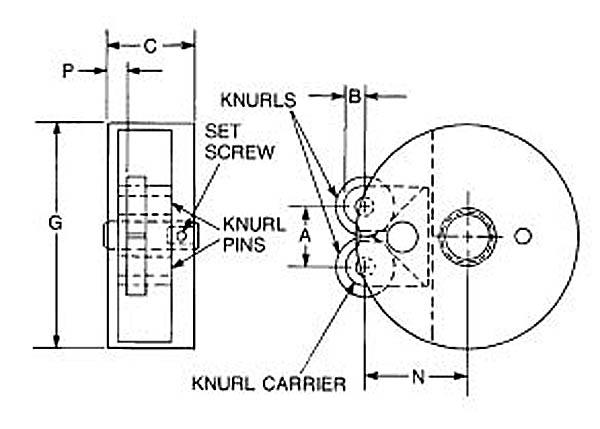

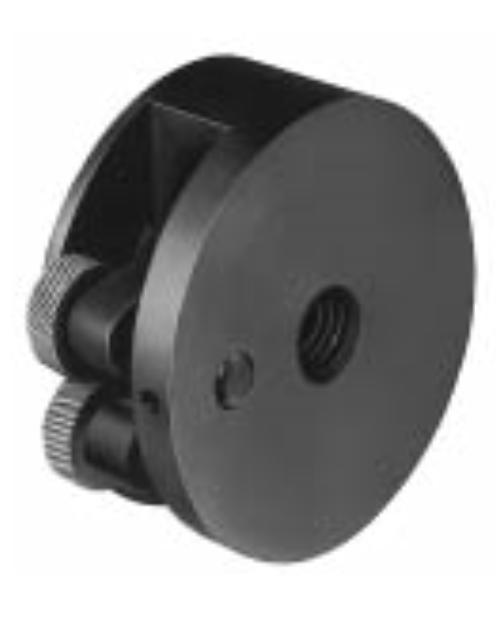

Double Knurl Cross Slide Holder This 2-knurl holder adds a new dimension to cross slide knurling - diamond knurling using a left and right diagonal knurl. This is a profitable substitute for the cost and inconvenience of using and stocking diamond knurls. The Double Knurl System provides cleaner straight, diagonal, and diamond knurls - • through solid contact with the workpiece, so there is less chance of slipping. • through broader distribution of pressure on the workpiece, minimizing "crushing". • through a "floating" knurl carrier which is self-centering on the workpiece. • through a reversible knurl carrier, which allows you to position the knurls closer to the collet for greater rigidity. • through carbide knurl pins which are highly wear-resistant.
