Recessing Swing Tools and Back Rests

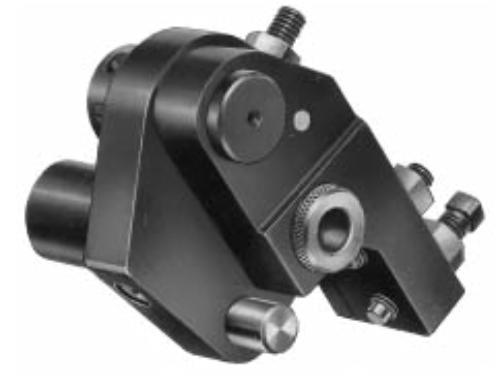

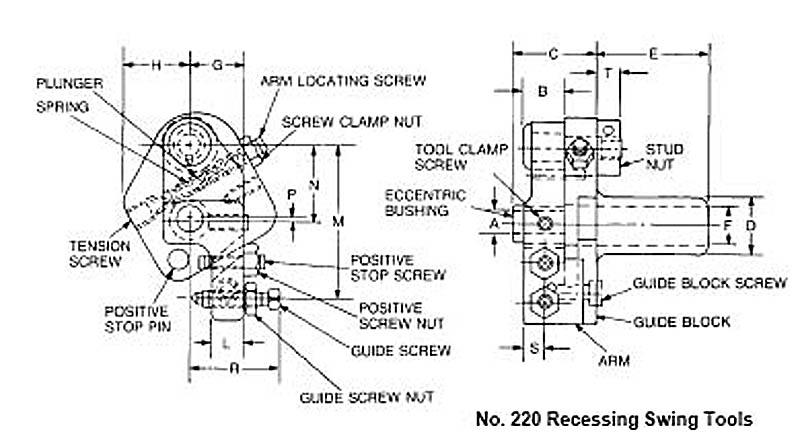

No. 220 recessing Swing Tools

The eccentric bushings make possible concentric grinding of the recessing tools, and they can

then be rotated for right or left hand recessing. Tools have a positive stop which accurately

controls the turned diameter and are equipped with a guide block on the swinging arm for

rigidity.

When the tool has been advanced into the work and is in a position ready to cut, the arm

carrying the cutting tool is actuated by a fixed or an adjustable guide mounted on the cross slide.

Each tool comes with two eccentric bushings.

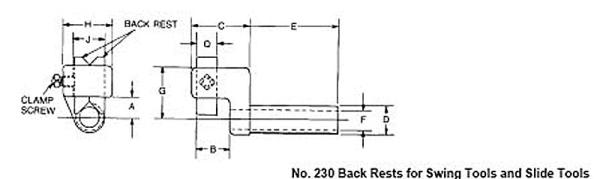

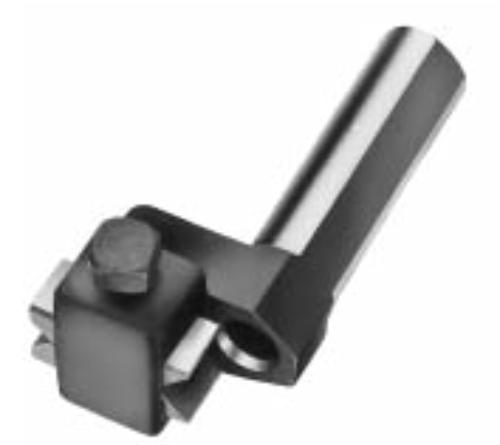

No. 230 Back Rests for Swing Tools and Slide Tools

Furnished with Carbide Back Rests

Back rests are held in the shanks of external swing tools, knurling swing tools and slide tools to support the workpiece during the operation. Back rests have "V" on both ends to provide full capacity with a single set of rests.
Shank Tool Moves Tool No. Dia. from Center 5/8" 1/8" 711-220-200 3/4" 1/8" 711-220-220 1" 1/8" 711-220-222 Shank Capacity Tool No. Dia. Diameter 7/16" 5/16" 711-230-100 Tool No. A B C D E F G H L M N P R S T 711-220-200 1/4 7/16 15/16 5/8 1-1/4 7/16 5/8 3/4 3/8 1-3/4 7/8 .008-.020 3/4 7/32 1/4 711-220-220 3/8 21/32 1-5/16 3/4 2 1/2 7/8 27/32 7/16 2-1/2 1-5/16 .012-.026 1-1/16 1/4 5/16 711-220-222 1/2 3/4 1-3/4 1 2-1/2 11/16 1 1-1/4 5/8 2-9/16 1-11/32 .015-.035 1-3/16 5/16 3/8 Tool No. 711-220-200 711-220-220 711-220-222 Arm 211-22002-3 211-22003-3 211-22004-2 Eccentric Bushing 211-22011 (.008) 211-22015 (.012) 211-22012 (.015) Eccentric Bushing 211-22010 (.020) 211-22016 (.026) 211-22013 (.0350 Tool Clamp Screw 92-5390-620 92-5390-824 92-5390-824 Guide Block 211-22009 NONE 211-22014 Guide Block Screw 92-505-616 NONE 92-5050-820 Guide Screw 92-5191-624 92-5191-828 92-5191-832 Guide Screw Nut 92-6010-611 92-6015-810 92-6015-810 Stud 211-21009-1 211-21010-1 211-21011-1 Pin 92-900-304 92-900-406 92-900-508 Stud Nut 472-153 472-279 472-156 Arm Locating Screw 92-5390-620 92-5390-820 92-5391-820 Screw Clamp Nut 92-6010-611 92-6015-810 92-6015-810 Positive Stop Screw 92-5390-624 92-5391-832 92-5191-832 Positive Stop Scr. Nut 92-6010-611 92-6015-810 92-6015-810 Tension Screw 92-5071-808 92-5071-1008 92-5071-1612 Positive Stop Pin 211-21512 211-22007-1 NONE Spring 92-1000-632-20 92-1000-836-19 92-1000-1240-16 Arm Locating Pin 92-902-820 92-900-428 92-900-832 Plunger 211-21012 211-21013 211-21014 Shank 211-21501 211-21001-2 211-22001-1 Tool No. A B C D E F G H J Q 711-230-100 3/16 3/8 3/4 7/16 1-7/16 1/4 11/16 3/4 15/32 5/16 Tool No. 711-230-100 Carbide Back Rest 211-93018-1 Clamp Screw 92-5012-810 Body 211-23001-3
