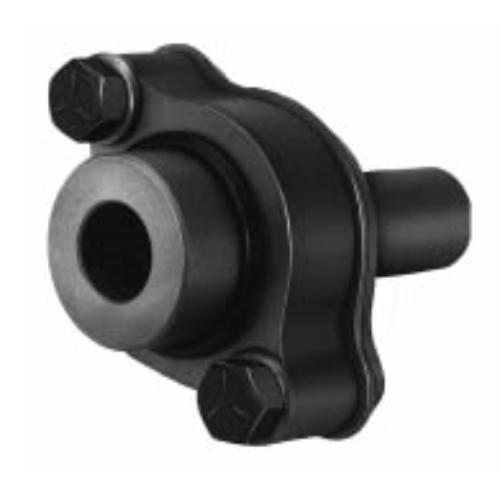

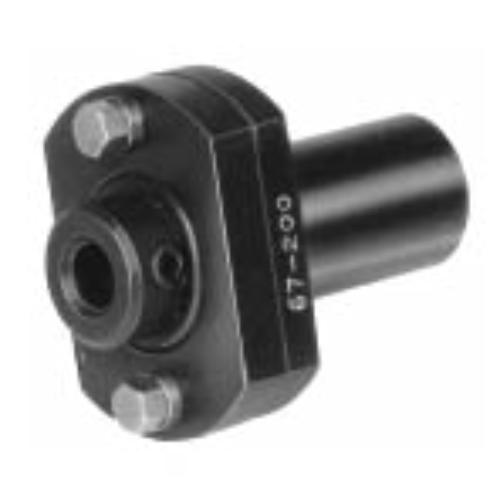

No. 67 Floating Adjusting Reamer Holders

SELF-ALIGNING - REAMS TO SIZE - Eliminates Chatter -Eliminates Bell Mouth!

The Floating Reamer Holder has outstanding operational advantages. As its name suggests, the

older floats freely on bearings, providing alignment when the reamer enters the hole. The Floating

Holder and the reamer are held centrally by a newprene ring.

The reamer, after being adjusted to approximate alignment with work, aligns itself with the hole

being reamed, eliminating bellmouthed and egg-shaped holes.

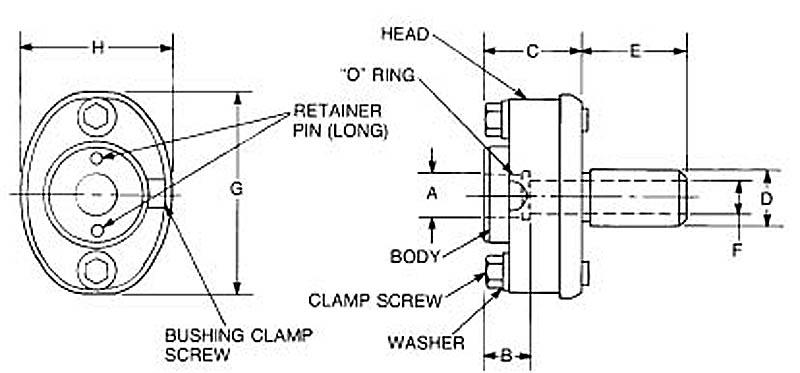

Shank Dia. Tool No. 5/8" 711-67-100 5/8" 711-67-200* 3/4" 711-67-120 1" 711-67-122 1-1/4" 712-67-1125** 1-1/2" 712-67-1150** 2" 712-67-1200 Inches Tool No. A B C D E F G H 711-67-100 1/2 1/2 1-1/16 5/8 1-1/8 3/8 2-1/4 1-11/16 711-67-200 1/4 3/8 1-1/16 5/8 1-1/8 3/8 1-3/8 1 711-67-120 5/8 13/16 1-7/16 3/4 1-1/2 1/2 3 2 711-67-122 1 1-3/16 1-13/16 1 2 11/16 3-5/8 2-3/8 712-67-1125** 1-1/2 3/4 2-5/16 1-1/4 3-3/4 3/4 4-1/8 2-3/4 712-67-1150** 1-1/2 3/4 2-5/16 1-1/4 3-3/4 3/4 4-1/8 2-3/4 712-67-1200 1-1/2 3/4 2-5/16 2 3-3/4 3/4 4-1/8 2-3/4 Tool No. 711-67-100 711-67-120 711-67-122 711-67-200 Head 211-6702-1 211-6714 211-6712-2 211-6719 Body 211-6703-1 211-6715 211-6710 211-6718 Retainer 211-6704 211-6716 211-6709 NONE Spacer 211-6707 211-6717 211-6711 211-6720 Ret. Pin-Long 211-6706 92-900-520 92-900-620 NONE Ret. Pin-Short 211-6706 92-900-514 92-900-616 NONE Steel Ball 429-1288 429-1288 429-1288 NONE "O-Ring" 466-615 466-608 466-616 466-607 Bush. Clamp Screw 92-5391-808 92-5390-1008 92-5391-1210 92-5390-606 Clamp Washer 211-10545-1 92-2040-1002-20 92-2040-1004-20 211-6723 Clamp Screw 211-10520-1 92-5035-1032 92-5035-1034 211-6724 Shank 211-6701 211-6713 211-1050805 211-7621 Stop Pin NONE NONE NONE 92-902-410 Tool No. 712-67-1125 712-67-1150 712-67-1200 Head 212-6701 212-6701 212-6701 Body 212-6702 212-6702 212-6702 Retainer 212-6703 212-6703 212-6703 Spacer 212-6704 212-6704 212-6704 Guide Pin 92-902-1216 92-902-1216 92-902-1216 Ball 429-1293 429-1293 429-1293 "O-Ring" 466-273 466-273 466-273 Bush. Clamp Screw 472-689 472-689 472-689 Washer 92-2040-1202-24 92-2040-1202-24 92-2040-1202-24 Clamp Screw 92-5035-1236 92-5035-1236 92-5035-1236 Shank 212-10501 212-10501 212-10501
Brown-Sharpe SMT
Division of Lester Detterbeck Enterprises Ltd.
Website Design by North Country Website Design_
Copyright © 2016 Brown-Sharpe SMT. A division of Lester Detterbeck Enterprises, Ltd.

No. 67 Floating Adjusting Reamer

Holders

SELF-ALIGNING - REAMS TO SIZE -

Eliminates Chatter - Eliminates Bell Mouth!

The Floating Reamer Holder has outstanding operational

advantages. As its name suggests, the older floats freely on

bearings, providing alignment when the reamer enters the hole.

The Floating Holder and the reamer are held centrally by a

newprene ring.

The reamer, after being adjusted to approximate alignment with

work, aligns itself with the hole being reamed, eliminating

bellmouthed and egg-shaped holes.


Shank Dia. Tool No. 5/8" 711-67-100 5/8" 711-67-200* 3/4" 711-67-120 1" 711-67-122 1-1/4" 712-67-1125** 1-1/2" 712-67-1150** 2" 712-67-1200 Inches Tool No. A B C D E F G H 711-67-100 1/2 1/2 1-1/16 5/8 1-1/8 3/8 2-1/4 1-11/16 711-67-200 1/4 3/8 1-1/16 5/8 1-1/8 3/8 1-3/8 1 711-67-120 5/8 13/16 1-7/16 3/4 1-1/2 1/2 3 2 711-67-122 1 1-3/16 1-13/16 1 2 11/16 3-5/8 2-3/8 712-67-1125** 1-1/2 3/4 2-5/16 1-1/4 3-3/4 3/4 4-1/8 2-3/4 712-67-1150** 1-1/2 3/4 2-5/16 1-1/4 3-3/4 3/4 4-1/8 2-3/4 712-67-1200 1-1/2 3/4 2-5/16 2 3-3/4 3/4 4-1/8 2-3/4 Tool No. 711-67-100 711-67-120 711-67-122 711-67-200 Head 211-6702-1 211-6714 211-6712-2 211-6719 Body 211-6703-1 211-6715 211-6710 211-6718 Retainer 211-6704 211-6716 211-6709 NONE Spacer 211-6707 211-6717 211-6711 211-6720 Ret. Pin-Long 211-6706 92-900-520 92-900-620 NONE Ret. Pin-Short 211-6706 92-900-514 92-900-616 NONE Steel Ball 429-1288 429-1288 429-1288 NONE "O-Ring" 466-615 466-608 466-616 466-607 Bush. Clamp Screw 92-5391-808 92-5390-1008 92-5391-1210 92-5390-606 Clamp Washer 211-10545-1 92-2040-1002-20 92-2040-1004-20 211-6723 Clamp Screw 211-10520-1 92-5035-1032 92-5035-1034 211-6724 Shank 211-6701 211-6713 211-1050805 211-7621 Stop Pin NONE NONE NONE 92-902-410 Tool No. 712-67-1125 712-67-1150 712-67-1200 Head 212-6701 212-6701 212-6701 Body 212-6702 212-6702 212-6702 Retainer 212-6703 212-6703 212-6703 Spacer 212-6704 212-6704 212-6704 Guide Pin 92-902-1216 92-902-1216 92-902-1216 Ball 429-1293 429-1293 429-1293 "O-Ring" 466-273 466-273 466-273 Bush. Clamp Screw 472-689 472-689 472-689 Washer 92-2040-1202-24 92-2040-1202-24 92-2040-1202-24 Clamp Screw 92-5035-1236 92-5035-1236 92-5035-1236 Shank 212-10501 212-10501 212-10501
