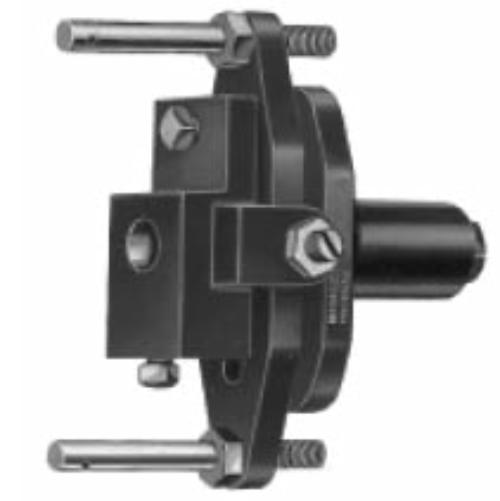

No. 225 Recessing Tools

For Internal Chamfering

No. 225 Recessing Tools are used for internal chamfering and are actuated by the forward

movement of the turret. When the adjustable tool stops contact the spindle box nut, the forward

movement of the Tool Holder is stopped. Then, as the turret advances, the holder pivots to allow

the recessing tool to cut.

These tools are used only for chamfering internally as they have no longitudinal internally as they

have no longitudinal movement. They can be used with the spindle running in either direction.

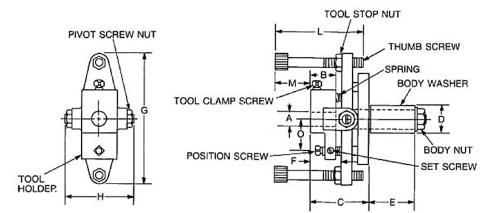

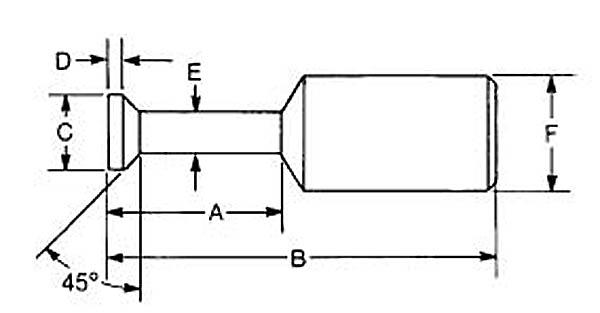

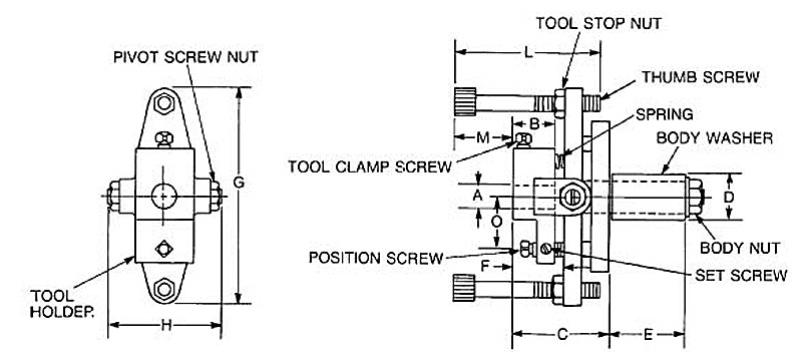

Shank Dia. Mahchines Where Used Tool No. 5/8" 00 & 00G Auto. 711-225-100 3/4" 0 & 0G Auto. 711-225-120* 1" 2 & 2G Auto. 711-225-122* * For No. 2 machines, 3/4" capacity, use 711-225-120 with Turret Tool Adapter No. 711-260-222 or 711-261-222. Recessing Tool Where Used Tool No. Pkg. of 4 711-220-200 711-94500 711-225-100 711-94501 711-94502 711-94503 711-225-120 711-94504 711-94505 711-94506 711-220-220 711-94507 711-94508 711-220-222 711-94509 711-225-122 711-94510 711-94511 Max .Shank Max Tool Inches Tool No. Advance Swing A B C D E F G H L M O 711-225-100 3/32 8° 1/4 1/2 1-11/32 5/8 1 25/32 2-5/8 1-11/16 1-7/8 11/16 5/8 711-225-120 1/8 8° 5/16 5/8 1-19/32 3/4 1-1/2 15/16 3-5/8 1-13/16 2-5/16 1 7/8 711-225-122 5/32 8° 1/2 7/8 2 1 1-5/8 1-1/4 4-5/8 2-3/8 3-1/16 1-1/4 1-1/8 Tool No. 711-225-100 711-225-120 711-225-122 Tool Holder 211-22507 211-22508 211-22509 Brass Shoe 92-5930-504 92-5930-604 92-5930-604 Spring 92-1000-824-20 92-1000-1024-19 92-1000-1236-18 Tool Clamp Screw 92-5012-616 92-5010-824 92-5010-1032 Position Screw 92-5012-616 92-5010-816 92-5010-1020 Tool Stop 92-5120-840 211-22514 472-836 Tool Stop Nut 92-6105-814 92-6015-814 92-6015-1017 Pivot Screw 211-22517 211-22517 91-537-11 Pivot Screw Nut 92-6015-810 92-6015-810 92-6015-1012 Body Washer 92-2040-802-16 92-2040-802-20 92-2040-1204-28 Body Nut 92-6015-810 92-6015-810 92-6015-1214 Set Screw 92-5071-605 92-5071-808 92-5071-812 Shank 211-22501-2 211-22502 211-22503 Body 211-204-2 211-22505-2 211-22506-2 TOOLS for RECESSING TOOLS d- High Speed Steel Hardened Inches Tool No. A B C D E F 711-94500 5/16 7/8 0.14 0.03 0.08 1/4 711-94501 7/16 1 0.19 0.03 0.11 1.4 711-94502 9/16 1-1/8 0.24 0.03 0.15 1/4 711-94503 1/2 1-1/4 0.22 0.04 0.15 5/16 711-94504 5/8 1-3/8 0.26 0.04 0.18 5/16 711-94505 3/4 1-1/2 0.3 0.04 0.21 5/16 711-94506 9/16 1-1/2 0.24 0.045 0.18 3/8 711-94507 11/16 1-5/8 0.3 0.045 0.33 3/8 711-94508 13/16 1-3/4 0.36 0.045 0.25 3/8 711-94509 5/8 1-7/8 0.27 0.05 0.2 1/2 711-94510 3/4 2 0.33 0.05 0.25 1/2 711-94511 1 2-1/4 0.4 0.05 0.3 1/2 Note: For large holders, use standard Woodruff Keyseat Cutters.
