Fixed and Adjustable Guides

Right-hand Fixed Guides are held under the front tool post in place of the raising block, while

Left-hand Guides are attached to the side of the tool post. Guides control the motion of various

swing tool arms and are used also to actuate angular cutting-off tools and slide tools.

The Right-hand Guide is used when the forming tool in the front tool post is set to cut with the

spindle running forward. The Left-hand Guide is used when the forming tool in the front tool

post is set to cut with the spindle running backward.

    Adjustable Guides Adjustable guides are mounted in the same way as fixed guides. They are used whenever there is longitudinal movement of the turret in the operation.

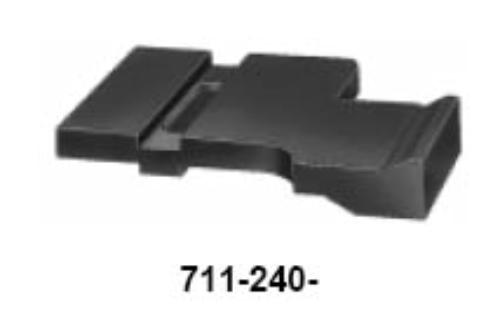

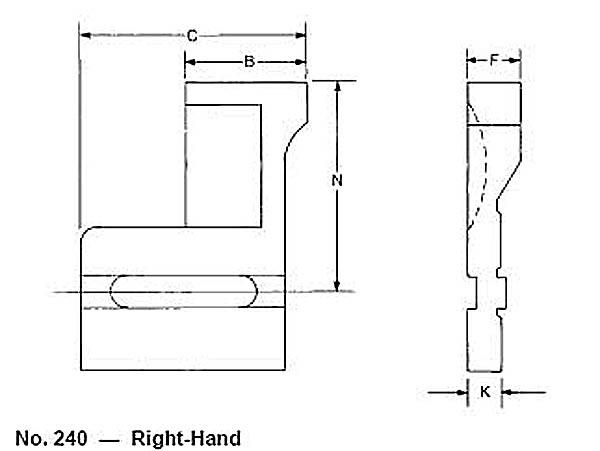

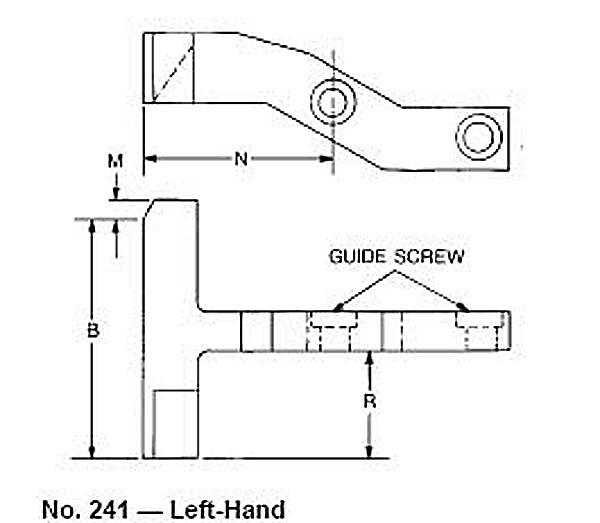

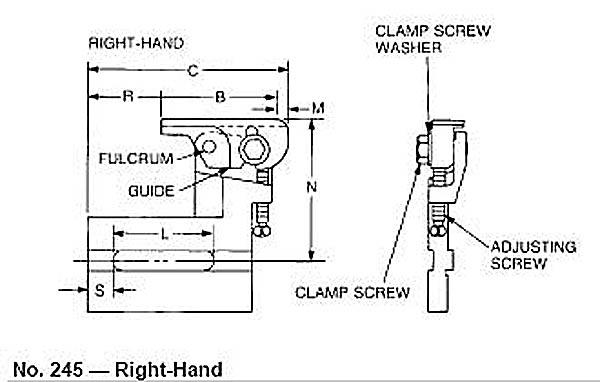

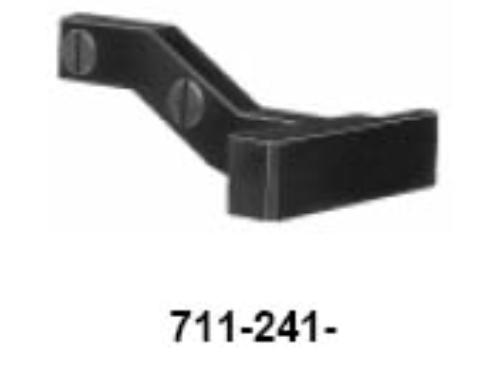

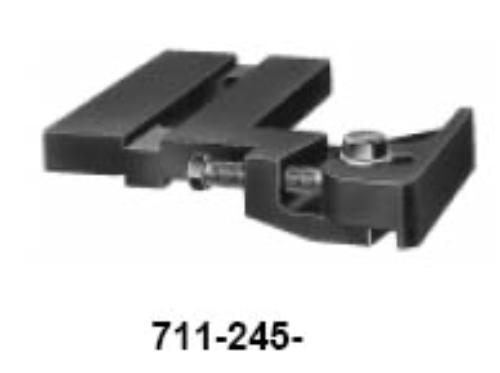

NO. 240 FIXED GUIDES - Right Hand Machines Where Used Tool No. 00 & 00G Auto. 711-240-100 0 & 0G Auto. 711-240-120 2 & 2G Auto. & 3 711-240-122 No. 240- Right Hand             Inches Tool No. B C D* F K N 711-240-100 1-3/8 2-1/8 1/16 3/8 1/4 2-1/8 711-240-120 1-3/4 3 1/16 5/8 5/16 2-13/16 711-240-122 2 3-3/4 1/8 7/8 1/2 3-1/2 *D (not shown in illustrations) represents distance from face of guide to cutting edge of form tool. NO. 241 FIXED GUIDES - Left Hand Machines Where Used Tool No. 00 & 00G Auto. 711-241-100 0 & 0G Auto. 711-241-120 2 & 2G Auto. & 3 711-241-122 No. 241- Left Hand   Inches Tool No. B D* M N R 711-241-100 2-1/8 9/32 1/8 1-1/32 13/16 711-241-120 2-1/4 5/32 1/8 1-7/16 1-1/4 711-241-122 2-15/16 0 3/16 2-3/8 1-3/8 *D (not shown in illustrations) represents distance from face of guide to cutting edge of form tool. No. 245- Right Hand            Inches Tool No. B C D* L M N R S 711-245-100 1-11/16 2-9/16 7/32 1-5/16 1/16 1-31/32 13/16 1/4 711-245-120 2-3/8 3-12/16 0 1-7/8 3/16 2-7/8 1-1/4 1/2 711-245-122 3-5/8 5-5/8 0 2-9/16 1/8 3-5/8 1-7/8 11/16 *D (not shown in illustrations) represents distance from face of guide to cutting edge of form tool. NO. 245 ADJ. GUIDES Right Hand Guide Swings Through 30° Angle Machines Where Used Tool No. 00 & 00G Auto. 711-245-100 0 & 0G Auto. 711-245-120 2 & 2G Auto. & 3 711-245-122 NO. 246 ADJ. GUIDES  Left Hand Guide Swings Through 30° Angle MachinesWhere Used Tool No. 00 & 00G Auto. 711-246-100 0 & 0G Auto. 711-246-120 2 & 2G Auto. & 3 711-246-122 No. 246- Left Hand Inches Tool No. B D* M N R 711-246-100 2 1/4 1/8 1-1/16 11/16 711-246-120 3-5/8 0 1/8 2-3/8 1-3/8 711-246-122 3-5/8 0 1/8 1-31/32 1-3/8 *D (not shown in illustrations) represents distance from face of guide to cutting edge of form tool. Tool No.  711-245-100 711-245-120 711-245-122 711-246-100 711-246-122 711-246-222 Guide 211-24508 211-24509-1 211-24510 211-24604-1 211-24510 211-24510 Adjusting Screw  211-24515 92-5010-836 92-5010-1040 92-5012-620 92-5010-1040 92-5010-1048 Clamp Screw  92-5200-816 92-5035-820 92-5035-1032 92-5200-820 92-5200-1032 92-5035-1032 Clamp Scr. Washer  NONE 92-2040-80-18 92-2040-1002-24 NONE 92-2040-1002-20 92-2040-1002-20 Fulcrum 92-900-812 92-900-818 92-900-1020 92-900-824 92-900-1020 92-900-1020 Body 211-24501-1 211-24502 211-24503 211-24601-1 211-24603-1 211-24609 Support Clamp Scr.  NONE NONE NONE 92-5050-816 92-5050-1232 92-5380-1024
