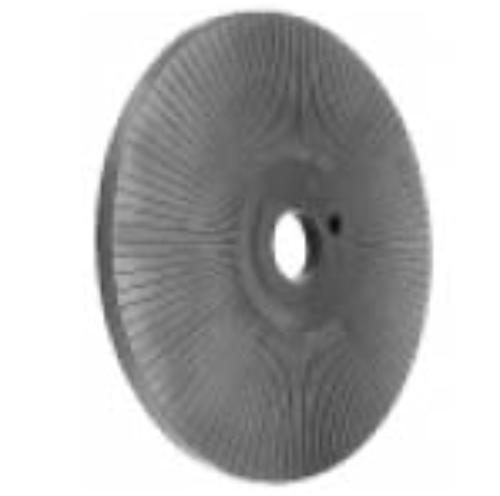

Cam Blanks

Pre-colored, ready for scribing

Cam Blanks are for use on automatic screw machines and are furnished for lead, cross section and verticle

slide attachment cams. They are made from mild steel and are provided with a locating hole and are

bored, turned and graduated into 100 sectors. These divisions are for convenience in laying out the cam to

be cut. Shaft holes are a few thousandths undersize to allow for growth to correct fit after hardening. Cam

blanks for No. 4 Machine are provided with the necessary holes but are not graduated.

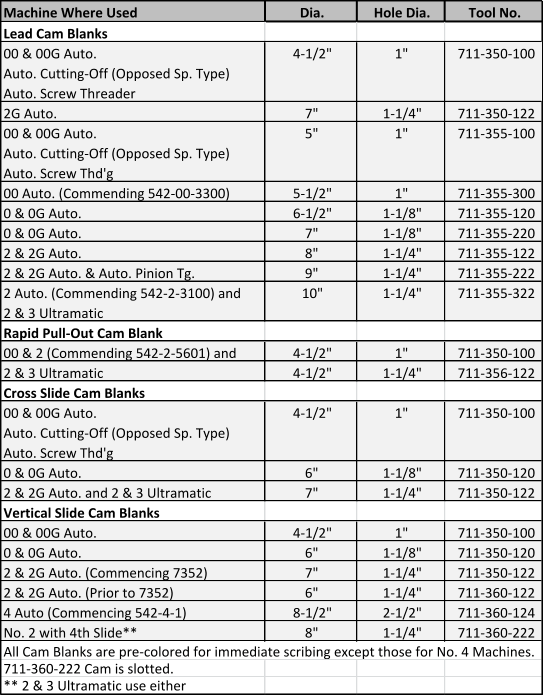

Machine Where Used Dia. Hole Dia. Tool No. Lead Cam Blanks 00 & 00G Auto. 4-1/2" 1" 711-350-100 Auto. Cutting-Off (Opposed Sp. Type) Auto. Screw Threader 2G Auto. 7" 1-1/4" 711-350-122 00 & 00G Auto. 5" 1" 711-355-100 Auto. Cutting-Off (Opposed Sp. Type) Auto. Screw Thd'g 00 Auto. (Commending 542-00-3300) 5-1/2" 1" 711-355-300 0 & 0G Auto. 6-1/2" 1-1/8" 711-355-120 0 & 0G Auto. 7" 1-1/8" 711-355-220 2 & 2G Auto. 8" 1-1/4" 711-355-122 2 & 2G Auto. & Auto. Pinion Tg. 9" 1-1/4" 711-355-222 2 Auto. (Commending 542-2-3100) and 10" 1-1/4" 711-355-322 2 & 3 Ultramatic Rapid Pull-Out Cam Blank 00 & 2 (Commending 542-2-5601) and 4-1/2" 1" 711-350-100 2 & 3 Ultramatic 4-1/2" 1-1/4" 711-356-122 Cross Slide Cam Blanks 00 & 00G Auto. 4-1/2" 1" 711-350-100 Auto. Cutting-Off (Opposed Sp. Type) Auto. Screw Thd'g 0 & 0G Auto. 6" 1-1/8" 711-350-120 2 & 2G Auto. and 2 & 3 Ultramatic 7" 1-1/4" 711-350-122 Vertical Slide Cam Blanks 00 & 00G Auto. 4-1/2" 1" 711-350-100 0 & 0G Auto. 6" 1-1/8" 711-350-120 2 & 2G Auto. (Commencing 7352) 7" 1-1/4" 711-350-122 2 & 2G Auto. (Prior to 7352) 6" 1-1/4" 711-360-122 4 Auto (Commencing 542-4-1) 8-1/2" 2-1/2" 711-360-124 No. 2 with 4th Slide** 8" 1-1/4" 711-360-222 All Cam Blanks are pre-colored for immediate scribing except those for No. 4 Machines. 711-360-222 Cam is slotted. ** 2 & 3 Ultramatic use either
