Box Tools with Carbide “V” Rests

Provide Superior Finishes - Hold Close Tolerances!

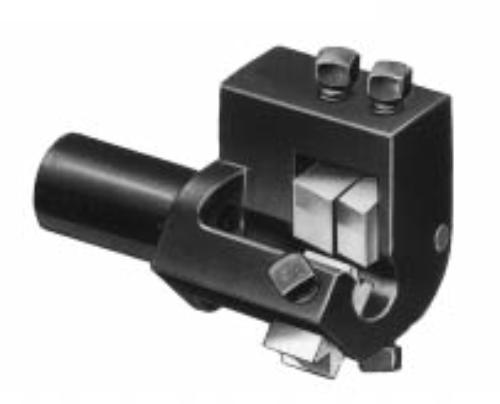

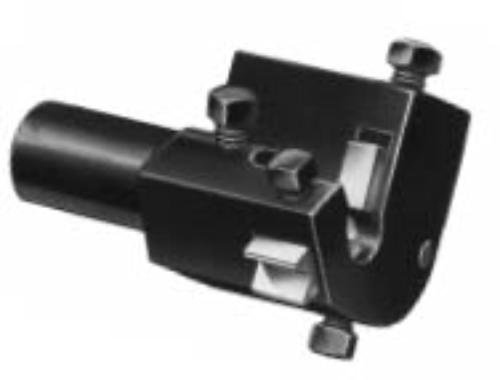

Nos. 45 and 46 Box tools are designed primarily for light finishing cuts where fine finishes and

close tolerances are required. They are used also for general work, particularly on brass and

aluminum.

These tools have carbide back rests which greatly extend their wear-life. Rests are adjustable to

work on any diameter within the capacity of the tool.

Tool Nos. ending 322, 500 and 620 are arranged to hold a center drill or centering tool in the

shank, clamped in position by a set screw. Tool Nos. 711-45-322 and 711-46-322 are equipped

with two hardened blades; all the others have one hardened blade.

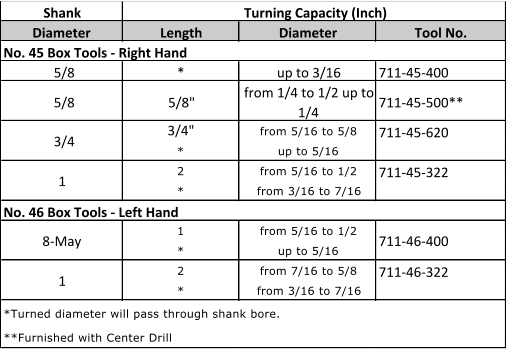

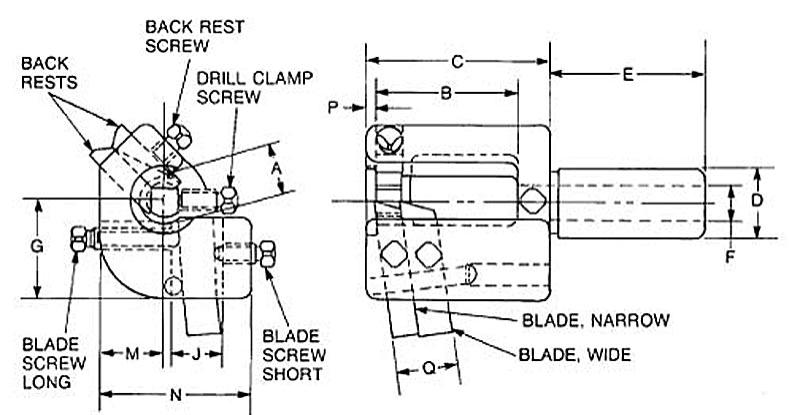

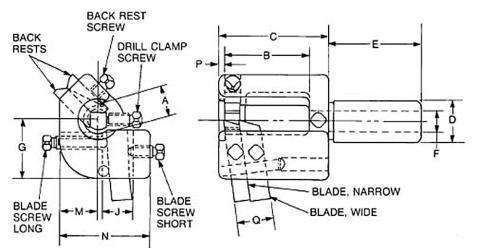

Shank Diameter Length Diameter Tool No. 5/8 * up to 3/16 711-45-400 5/8 5/8" from 1/4 to 1/2 up to 1/4 711-45-500** 3/4" from 5/16 to 5/8 * up to 5/16 2 from 5/16 to 1/2 * from 3/16 to 7/16 1 from 5/16 to 1/2 * up to 5/16 2 from 7/16 to 5/8 * from 3/16 to 7/16 **Furnished with Center Drill No. 46 Box Tools - Left Hand 8-May 711-46-400 1 711-46-322 *Turned diameter will pass through shank bore. Turning Capacity (Inch) No. 45 Box Tools - Right Hand 3/4 711-45-620 1 711-45-322 Tool No. A B C D E F G J M N P Q Blades No. 45 Box Tools 45-400 5/16 17/32 3/4 5/8 2 5/16 3/4 3/8 13/32 1-1/32 3/32 5/16 1/4 x 5/16" 45-500 9/16 5/8 1-3/8 5/8 1-3/8 5/16 1 19/32 5/8 1-1/2 1/8 1/4 1/4 x 3/8" 45-620 11/16 11/16 1-1/4 3/4 1-1/2 3/8 1-1/8 11/16 7/8 2 1/8 1/2 1/4 x 3/8" 45-322 11/16 2-1/16 2-5/8 1 2-1/4 1/2 1-7/16 3/4 15/16 2-3/16 1/8 7/8 3/8 x 3/8" - 3/8 X 1/2" No. 46 Box Tools 46-400 9/16 1-1/16 1-3/8 5/8 1-3/8 3/8 1 9/16 5/8 1-1/2 1/8 5/8 1/4 x 3/8" - 1/2 x 1/2" 46-322 11/16 2-1/16 2-5/8 1 2-1/4 1/2 1-7/16 3/4 15/16 2-3/16 1/8 7/8 3/8 x 1/2" - 1/2 x 1/2" Tool No. 711-45-400 711-45-500 711-45-620 711-45-322 711-46-322 711-46-400 Back Rest 211-93003-1 211-93002-1 211-93001-1 211-93008-1 211-93008-1 211-93002-1 Back Rest Scr. 92-5191-610 95-5012-812 95-5012-1016 95-5012-1012 9205012-1012 95-5012-812 Blade Screw - L 92-5191-616 92-5191-828 92-5191-1032 211-4509 211-4509 92-5191-824 Blade Screw - S 92-5191-612 92-5191-814 92-5191-1016 92-5191-1016 92-5191-1016 92-5191-814 Drill Clamp Scr. NONE 92-5012-812 92-5012-1020 92-5012-1020 92-5012-1020 NONE Center Drill NONE 211-96001 NONE NONE NONE NONE Body 211-4501-2 211-4502 211-4505 211-4507 211-4604 211-4602 Blade 711-94075 711-94076 711-94085 711-94085 711-94085 711-94076 Blade-Wide NONE NONE NONE NONE 711-94092 711-94083
Brown-Sharpe SMT
Division of Lester Detterbeck Enterprises Ltd.
Website Design by North Country Website Design.  _
Copyright © 2016 Brown-Sharpe SMT. A division of Lester Detterbeck Enterprises, Ltd.

Box Tools with Carbide “V” Rests

Provide Superior Finishes - Hold Close Tolerances!

Nos. 45 and 46 Box tools are designed

primarily for light finishing cuts where fine

finishes and close tolerances are required. They

are used also for general work, particularly on brass

and aluminum.

These tools have carbide back rests which greatly

extend their wear-life. Rests are adjustable to

work on any diameter within the capacity of the

tool.

Tool Nos. ending 322, 500 and 620 are arranged to hold a center

drill or centering tool in the shank, clamped in position by a set

screw. Tool Nos. 711-45-322 and 711-46-322 are equipped with two

hardened blades; all the others have one hardened blade.

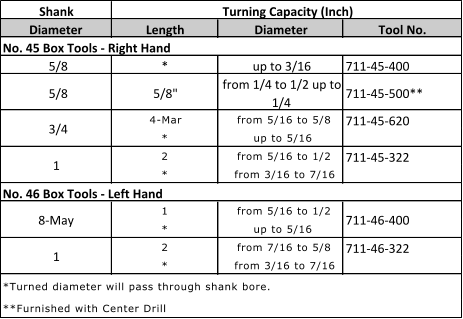

Shank Diameter Length Diameter Tool No. 5/8 * up to 3/16 711-45-400 5/8 5/8" from 1/4 to 1/2 up to 1/4 711-45-500** 4-Mar from 5/16 to 5/8 * up to 5/16 2 from 5/16 to 1/2 * from 3/16 to 7/16 1 from 5/16 to 1/2 * up to 5/16 2 from 7/16 to 5/8 * from 3/16 to 7/16 **Furnished with Center Drill No. 46 Box Tools - Left Hand 8-May 711-46-400 1 711-46-322 *Turned diameter will pass through shank bore. Turning Capacity (Inch) No. 45 Box Tools - Right Hand 3/4 711-45-620 1 711-45-322 Tool No. A B C D E F G J M N P Q Blades No. 45 Box Tools 45-400 5/16 17/32 3/4 5/8 2 5/16 3/4 3/8 13/32 1-1/32 3/32 5/16 1/4 x 5/16" 45-500 9/16 5/8 1-3/8 5/8 1-3/8 5/16 1 19/32 5/8 1-1/2 1/8 1/4 1/4 x 3/8" 45-620 11/16 11/16 1-1/4 3/4 1-1/2 3/8 1-1/8 11/16 7/8 2 1/8 1/2 1/4 x 3/8" 45-322 11/16 2-1/16 2-5/8 1 2-1/4 1/2 1-7/16 3/4 15/16 2-3/16 1/8 7/8 3/8 x 3/8" - 3/8 X 1/2" No. 46 Box Tools 46-400 9/16 1-1/16 1-3/8 5/8 1-3/8 3/8 1 9/16 5/8 1-1/2 1/8 5/8 1/4 x 3/8" - 1/2 x 1/2" 46-322 11/16 2-1/16 2-5/8 1 2-1/4 1/2 1-7/16 3/4 15/16 2-3/16 1/8 7/8 3/8 x 1/2" - 1/2 x 1/2" Tool No. 711-45-400 711-45-500 711-45-620 711-45-322 711-46-322 711-46-400 Back Rest 211-93003-1 211-93002-1 211-93001-1 211-93008-1 211-93008-1 211-93002-1 Back Rest Scr. 92-5191-610 95-5012-812 95-5012-1016 95-5012-1012 9205012-1012 95-5012-812 Blade Screw - L 92-5191-616 92-5191-828 92-5191-1032 211-4509 211-4509 92-5191-824 Blade Screw - S 92-5191-612 92-5191-814 92-5191-1016 92-5191-1016 92-5191-1016 92-5191-814 Drill Clamp Scr. NONE 92-5012-812 92-5012-1020 92-5012-1020 92-5012-1020 NONE Center Drill NONE 211-96001 NONE NONE NONE NONE Body 211-4501-2 211-4502 211-4505 211-4507 211-4604 211-4602 Blade 711-94075 711-94076 711-94085 711-94085 711-94085 711-94076 Blade-Wide NONE NONE NONE NONE 711-94092 711-94083
