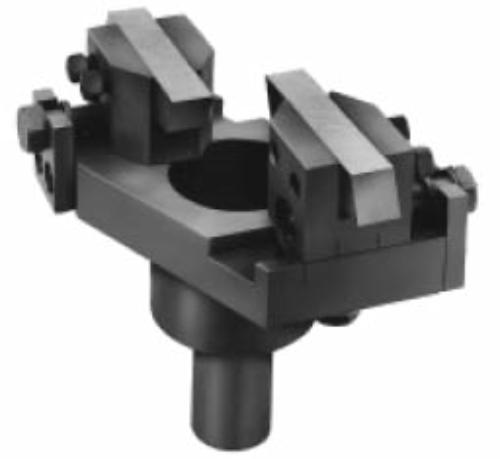

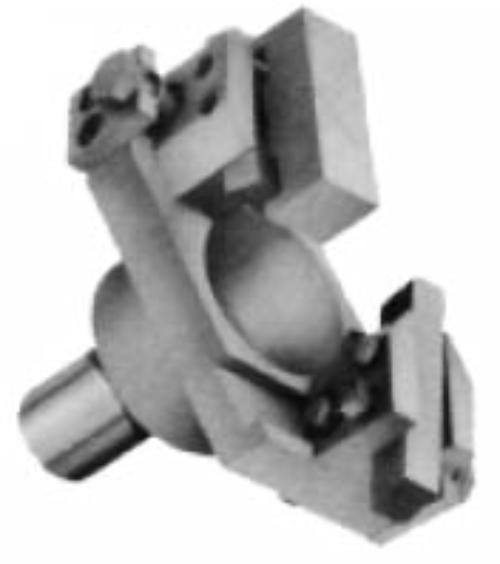

Balance Turning Tools with Instant Blade Setting

Blade block slides permit straight line diametral setting over the entire range of machine

capacity without changing the blade clearance angle. You get instant blade setting with

the one piece setting gage.

Blade blocks, blade block retainers and fine-adjust screws are totally interchangeable for

use with right and left-hand tools and with Roller Bace Box Tools. Setup is faster,

repeatability of settings is surer and machining performance is better. With the Balance

Turning Tool you will achieve fine finishes, closer tolerances, and longer tool life.

When you are looking for a finished turn or when holding close tolerances, it is

recommended that both blades be set to cut to the finished size. This will provide a truly

balanced cut with each blade cutting to an equal depth and removing an equal amount of stock. This will give you longer tool

life and better control of the tolerance and finish. If you are rought turning, one blade can be set to the rought dimension and

the other blade set to the finished dimension.

Balance Turning Tools Furnished with Two Blades

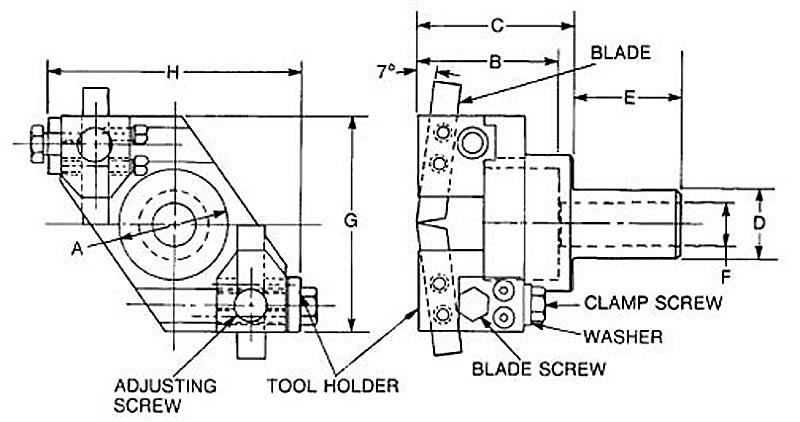

Right/Left Replaces Shank Turning Capacity Tool Hand (Old Dia. Length Diameter No. Operation* Number) 711-60-100 711-60-200 5/8 # Up to .340 711-60-300 Right Hand 711-60-120 711-60-220 711-60-100 1-1/4 .340 to .750 711-61-300 Left Hand 711-61-200 711-60-222 1 # Up to .625 711-60-322 Right Hand 711-60-122 2-3/4 .625 to 1.625 711-61-322 Left Hand 711-61-222 1-1/4 2-1/2 1.2 to 2.0 711-60-223 Right Hand 711-60-123 	1-3/16 2.0 to 2.4 711-61-223 Left Hand 711-61-123 # Turned diameter will pass through shank bore. * Right and Left Hand tools have the same capacity. Setting Gages Tools Used with Tool No. 711-60-300, 711-61-300 711-57-100 711-60-223, 711-61-223 711-57-123 711-60-322, 711-61-322 Inches Tool No. A B C D E F G H Blade Size 711-60-300 0.81 1.34 1.56 0.62 1.5 0.38 2.6 2.26 1/4 x 5/16" 711-60-223 2.1 2.6 2.86 1.25 2 0.81 4 4.7 1/2 x 1/2" 711-60-322 1.66 2.82 3.1 1 1.75 0.69 4 4 1/2 x 1/2" 711-60-300 0.81 1.34 1.56 0.62 1.5 0.38 2.6 0.26 1/4 x 5/16" 711-60-223 2.1 2.6 2.86 1.25 2 0.81 4 4.7 1/2 x 1/2" 711-61-322 1.66 2.82 3.1 1 1.75 0.69 4 4 1/2 x 1/2" Turning length is unlimited when the workpiece will pass through the tool shank. Note: Blade Blocks, Blade Block Retainers, Fine Adjustment Screw are interchangeable with equivalent sizes of Roller Back Box Tools.
