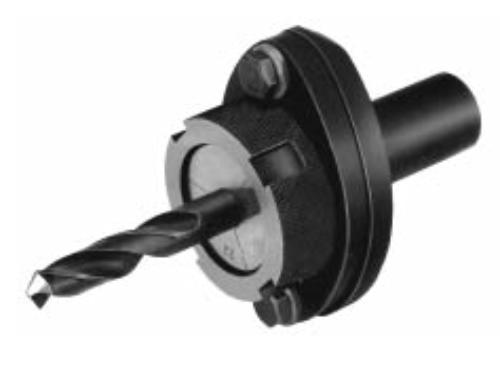

Adjustable Stub Collet Holders
Faster, Easier Set-up
•
Improved Accuracy
•
Increased Versatility
•
Time and Money Saving
Adjustable Stub Collet Holders simplify set-up and alignment of the tool with the center of
work. They only need to be aligned once after positioning in the turret. Mating tapers permit
tool and collet changes without need for realigning holder.
Stub Collets used with these holders have a range of +.005 to -.010" and eliminate need for
special bushings for decimal, metric, letter, number and fractional sizes of tool shanks.
Stub Collets close concentrically and hold tool shank over entire length of collet. They are
hardened and ground with taper alignment between holder and collet.
Stub Collet Holders use standard, off-the-shelf, ready-to-use Stub Collets and eliminate the need to drill, ream and finish bushing
blanks.
Hardened and ground Stub Collets last longer and hold tools truer than soft bushings. They are the same standard collets used
with B & S Screw Machines for surer, more concentric gripping of stock.
Stub Collet Holder with Complete Set of Collets
Set permits holding all sizes of tool shanks between 1/16" and 1/2". 29 No. 10 Stub Collets
handle all fractional, decimal, metric, letter or number sizes. Furnished complete with
wrench.
Sets are available for #11 and #22 stub collets upon request. Contact your local distributor.
