Adapters

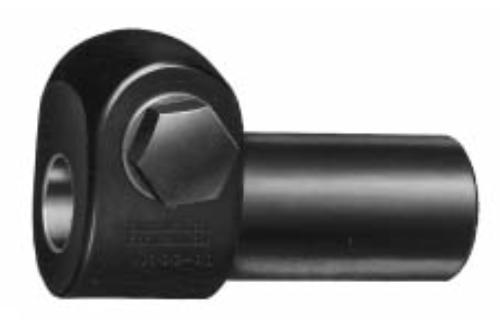

Turret Tool Adapters

Turret Tool Adapters permit the use of screw machine tools in larger machines than those for

which the tools are designed. This is an advantage when working on small diameters or on long

pieces where interferences may be a problem. Adapters also permit the use of infrequently used

tools between machines of different capacities.

The no. 260 Adapters extend beyond the turret which allows the use of small tools close to the

collet.

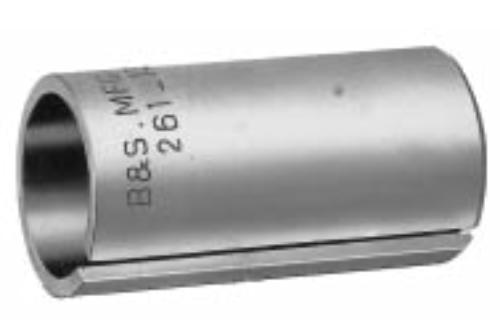

Split Bushing Adapters

With a Split Bushing Adapter holding a smaller toolholder in the turret of a machine of larger

capacity, the toolholder is held flush with the turret. This allows for full use of the turning length

of the machine.

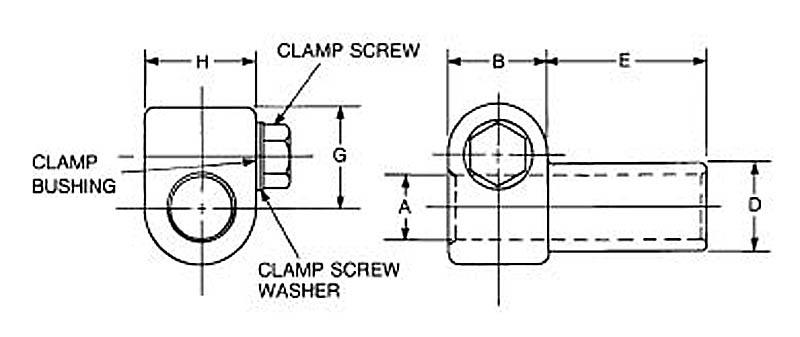

Turret Tool Shank Hole Diameter Tool No. 3/4" 5/8" 711-260-120 1" 5/8" 711-260-122 1" 3/4" 711-260-222 1-1/4" 1" 712-260-1125 1-1/2' 1" 712-260-1150 1-3/4' 1" 712-260-1175 Turret Tool Shank Length Tool No. Hole Diameter 3/4" 5/8" 1-7/16" 711-261-120 1" 5/8" 1-11/16" 711-261-122 1" 3/4" 1-11/16" 711-261-222 1-1/4" 1" 1-3/4" 711-261-123 Inches Tool No. A B D E G H 711-260-120 5/8 1-1/8 3/4 1-1/2 1-1/8 1 711-260-122 5/8 1-1/8 1 1-7/8 1-1/8 1-1/4 711-260-222 3/4 1-1/8 1 1-7/8 1-1/8 1-1/4 712-260-1125# 1 2-1/8 1-1/4 3-1/16 1-3/16 2 712-260-1150# 1 2-1/8 1-1/2 3-1/16 1-3/16 2 712-260-1175# 1 2-1/8 1-3/4 3-1/16 1-3/16 2 # Have flat on shank. Tool No. 711-260-120 711-260-122 711-260-222 711-260-1125 711-260-1150 711-260-1175 Body 211-26001-1 211-26002-1 211-26003-1 212-26001 212-26002 212-26003 Clamp Washer 92-2040-1202-24 92-2040-1202-24 92-2040-1202-24 92-2040-1602-32 92-2040-1602-32 92-2040-1602-32 Clamp Bushing 211-26005-1 211-26005-1 211-26006-1 NONE NONE NONE Clamp Screw 211-26008 211-26008 211-26008 NONE NONE NONE Set Screw NONE NONE NONE 92-5390-1616 92-5390-1616 92-5390-1616 Clamp Nut NONE NONE NONE 92-6015-1620 92-6015-1620 92-6015-1620 Clamp NONE NONE NONE 212-26004 212-26004 212-26004 Retainer NONE NONE NONE 429-158 429-158 429-158
